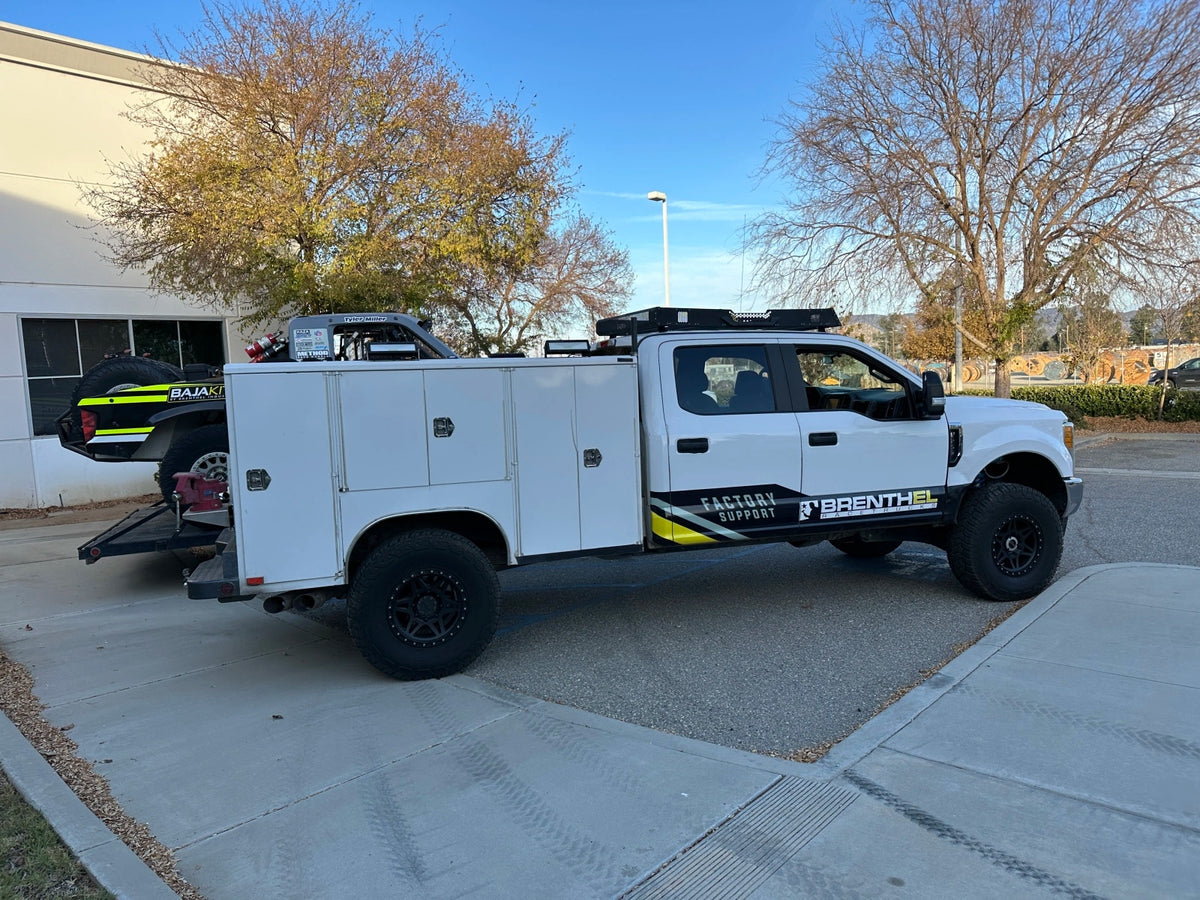

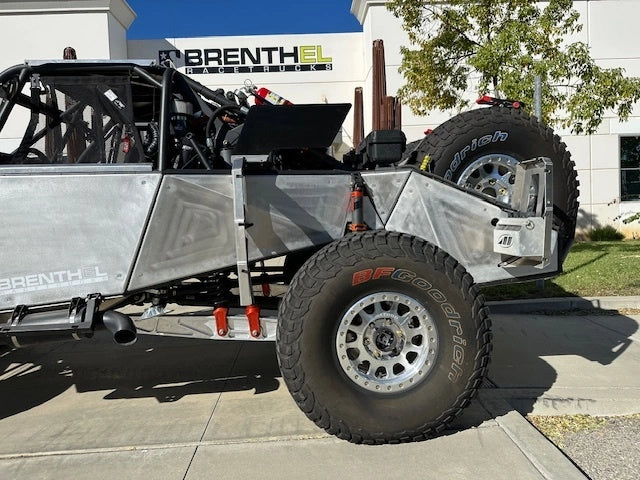

COMPLETE RACE PACKAGE - MAKE OFFERS

$1.2M OBO

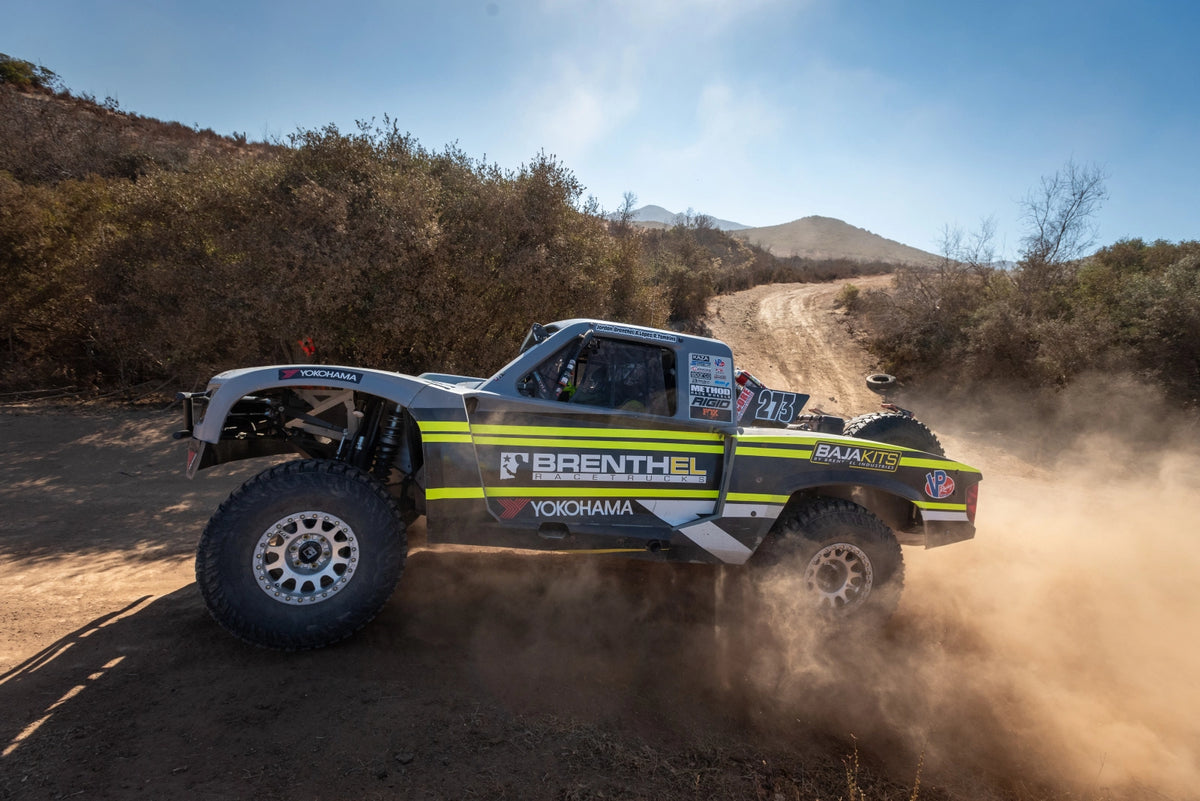

This truck just got 2nd place at the Baja 1000 and has all the goodies.

– Paddle Shifting
– Electric / Hydraulic Jacks

This truck was new in 2024 and will have a full prep with new engine before sale.

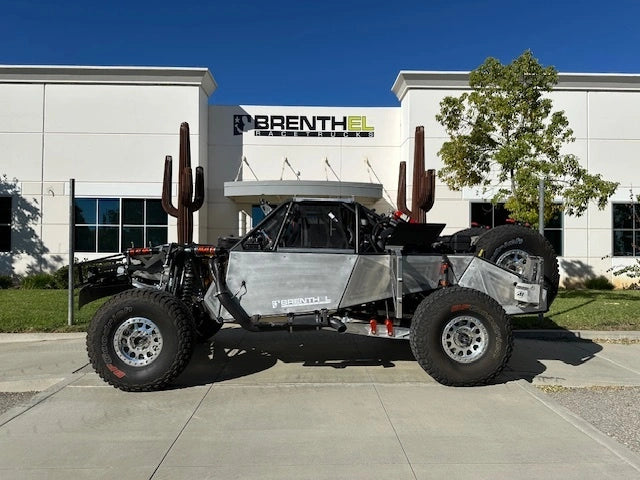

**Truck Chassis / Frame:
SCORE Legal Trophy Truck Chassis
100% CAD designed, chassis, arms, geometry & fixtures for precision fitment of all parts with / 4130 Tubing CNC cut and fixtures
All Mil Spec Aircraft Hardware on pivot points and suspension
Chassis Sandblasted and SteeliT painted
100% 4130 plate and tubing

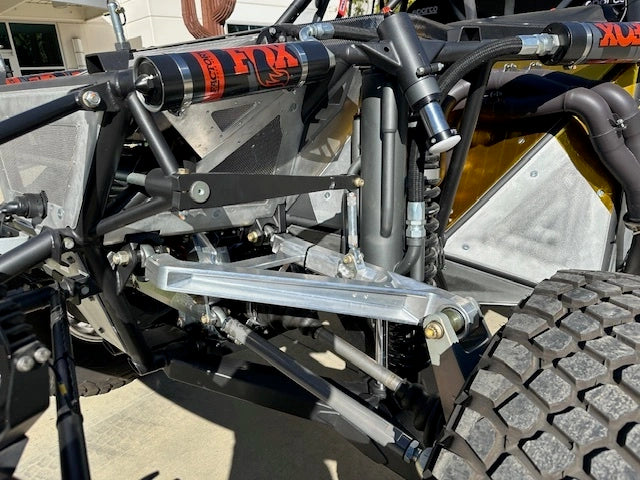

Trophy Truck Suspension:
3.0″ FOX coilovers B.I. proprietary valving
4.5″ FOX Bypass B.I. proprietary valving
2.5″ 4130 Hollow bolt on front snout
7075 Aircraft billet hubs
4130 – Upper and Lower Control Arms
Billet – Uprights with new 2″ Drop to lower Center of Gravity

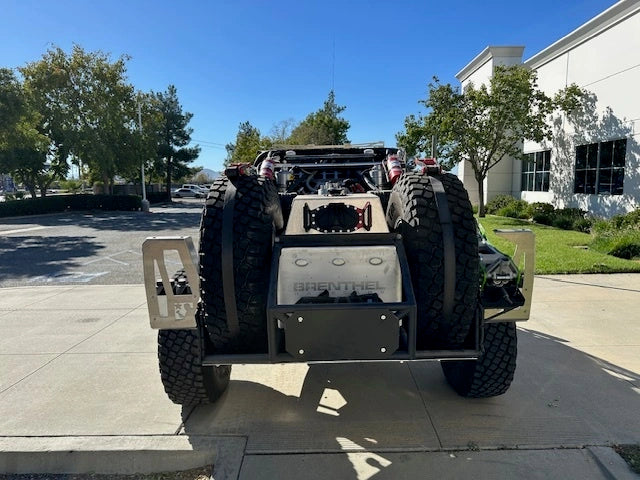

Rear Suspension:
3.0″ FOX coilovers w/ B.I. proprietary valving
4.5″ FOX Bypasss w/ B.I. proprietary valving – Trailing arms
Billet Trailing Arms

Steering Setup:
Power Steering – Billet PS Pump
HOWE / PSS or Lee – Steering Box with Billet Adapter and 4130 Swingers
B.I. Steering column assy. W/ 4130 shaft & sealed bearings

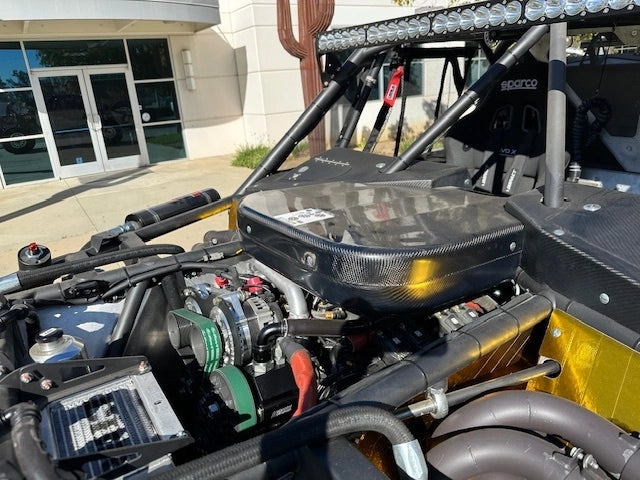

Drivetrain:
LS3 (Purchased from Turnkey, Wired and Tuned by Danzio)
Turbo 400 Culhane Trans with Fortin Underdrive
Custom B.I. Stainless Headers w/ precision fitment & specifications
4″ Custom 4130 Housing  (Completely Tig Welded with Billet Mounts)
300m Gun Drilled 36spline TT axles,
10″ Gearworks 3rd Member
6 piston Alcon Calipers w/ Floating Rotors and hardware
3.25″ 4130 spindles
1480 Driveline with Abro (High Speed Balance)
Fuel System – Redundant Weldon Fuel Pumps
95 gal. fuel cell, FIA & SCORE legal

Cooling System:
Custom double pass radiator w/ 2-14″ elec fans
Custom radiator lines w/ silicone hose / Oil Cooler / Trans Cooler / PS Cooler

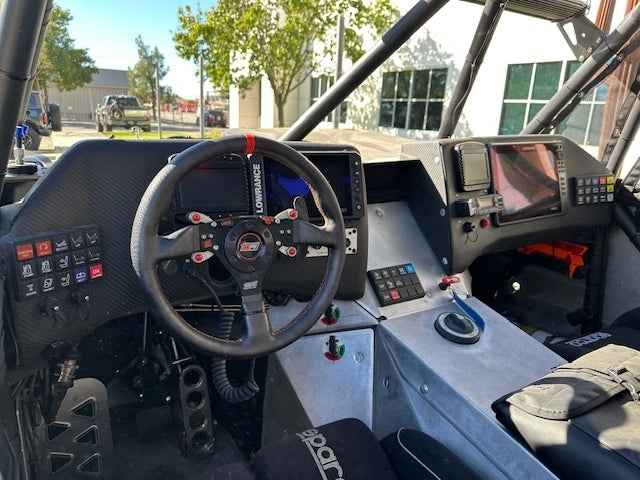

Interior:Seat Sliders (Included Driver & Passenger)
Carbon Dash
Fire Suppression system
2-  Sparco Seats
2-  Sparco CamLock Harnesses
Driver – 5″ Elite HDS GPS / Passenger 12″ GPS
2 – Total Power battery
LIFE Display on Driver & Passenger
Wiring / Electrical- Data Logging Included- Speed Pit Limiter Included- Brake Pressure Sensors- Engine Temp / Oil Temp / Fuel Pressure /

Body:
Full fiberglass body with Aluminum Paneling

Wheels and Tires:
6-17″ Method beadlocked wheels
6 -40″ NEW Tires
