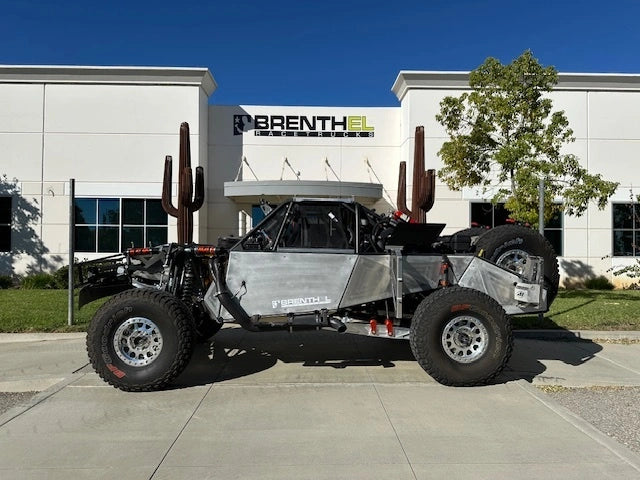

AWD NEW RACE SAN FELIPE 250

$915K – OBO

Brand new Brenthel AWD with 20 shake down miles.

These trucks are 12+ months out purchasing new but here’s a chance to get one that’s race ready and brand new

Danzio P600 / Fortin 5 speed with paddle Shifting / FOX Shocks

Truck Chassis / Frame:
SCORE Legal Trophy Truck Chassis
100% CAD designed, chassis, arms, geometry & fixtures for precision fitment of all parts
All 4130 Tubing CNC cut and fixtures
All Mil Spec Aircraft Hardware on pivot points and suspension
Chassis Sandblasted and SteeliT painted

Arms: **Heat Treated**
Engineered using 3D CAD to be as light and strong as possible
100% Boxed with 4130 plate and tubing

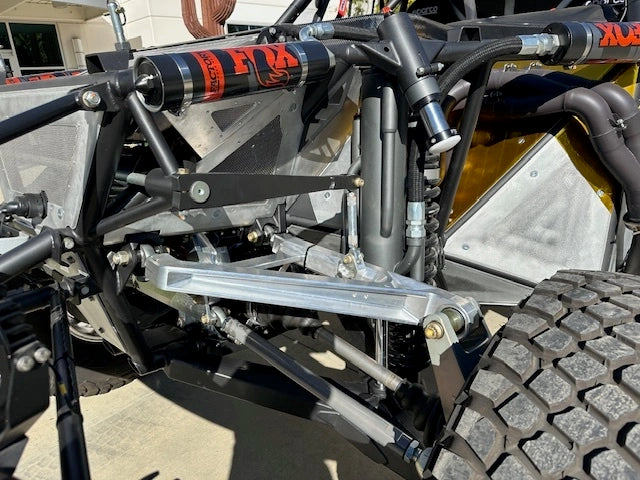

Trophy Truck Suspension:
3.0″ FOX coilovers B.I. proprietary valving
4.5″ FOX Bypass B.I. proprietary valving
Portal Custom Hubs designed with drop gear

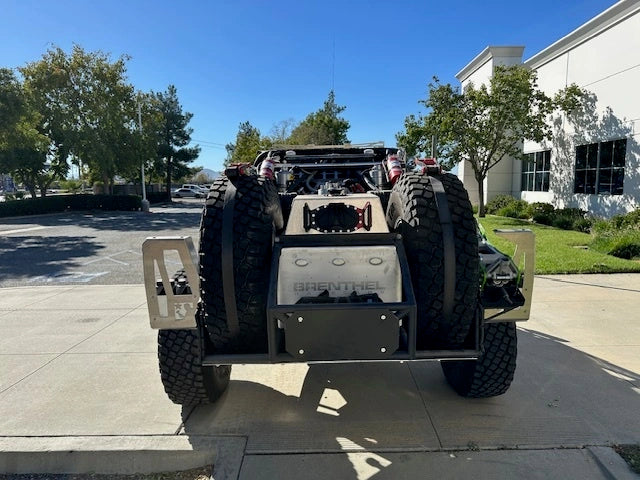

Rear Suspension:
3.0″ FOX coilovers w/ B.I. proprietary valving w/ Bumpstops
4.5″ FOX Bypasss w/ B.I. proprietary valving
Billet – Trailing arms

Steering Setup:
Power Steering
Billet PS Pump
HOWE / PSS or Lee (Based on avail) Steering Box with Billet Adapter and 4130 Swingers
B.I. Steering column assy. W/ 4130 shaft & sealed bearings

Drivetrain:
Danzio P600 (Big Block)
Fortin FRST 4.0 – 5 Speed Sequential
Fortin Front Diff
Custom B.I. Stainless Headers w/ precision fitment & specifications
4″ Custom 4130 Housing (Completely Tig Welded with Billet Mounts)
300m Gun Drilled 36spline TT axles,
10″ Tubeworks Cross Tie 3rd Member
6 piston Alcon Calipers w/ Floating Rotors and hardware
3.25″ 4130 spindles
1480 Driveline with Abro (High Speed Balance)
Fuel System – Redundant Weldon Fuel Pumps
95 gal. fuel cell, FIA & SCORE legal

Cooling System:
Custom double pass radiator w/ 2-14″ elec fans
Custom radiator lines w/ silicone hose
1 – Oil cooler
2 -Transmission coolers
1 – Transmission Heat Exchanger
1 – PS cooler (New 2022 with 2 pans and much more cooling)

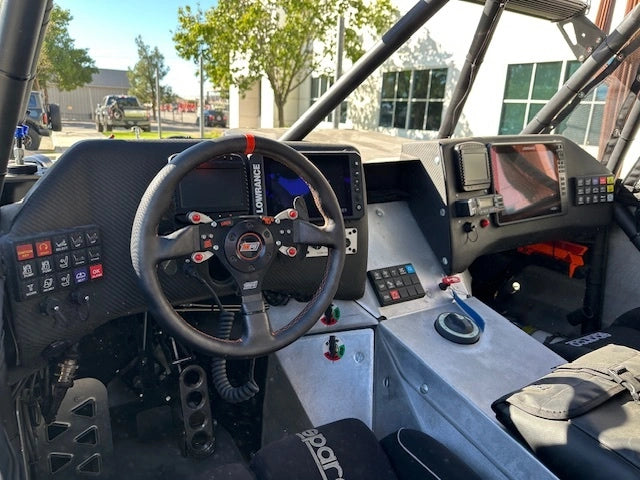

Interior:
Seat Sliders (Included Driver & Passenger)
Carbon Dash
Fire Suppression system
2- Sparco Seats
2- PRP CamLock Harnesses
Driver – 7″ Elite HDS GPS
Passenger – 12″ HDS GPS
2 – Total Power battery
All plumbing
LIFE Display on Driver & Passenger

Wiring / Electrical
– Paddle Shifting for Fortin 5 speed
– Data Logging Included
– Speed Pit Limiter Included
– Brake Pressure Sensors
– Engine Temp / Oil Temp / Fuel Pressure /

Body:
Full fiberglass body
All alum paneling

Wheels and Tires:
6-17″ Method beadlock wheels
6 -40″ NEW Tires
