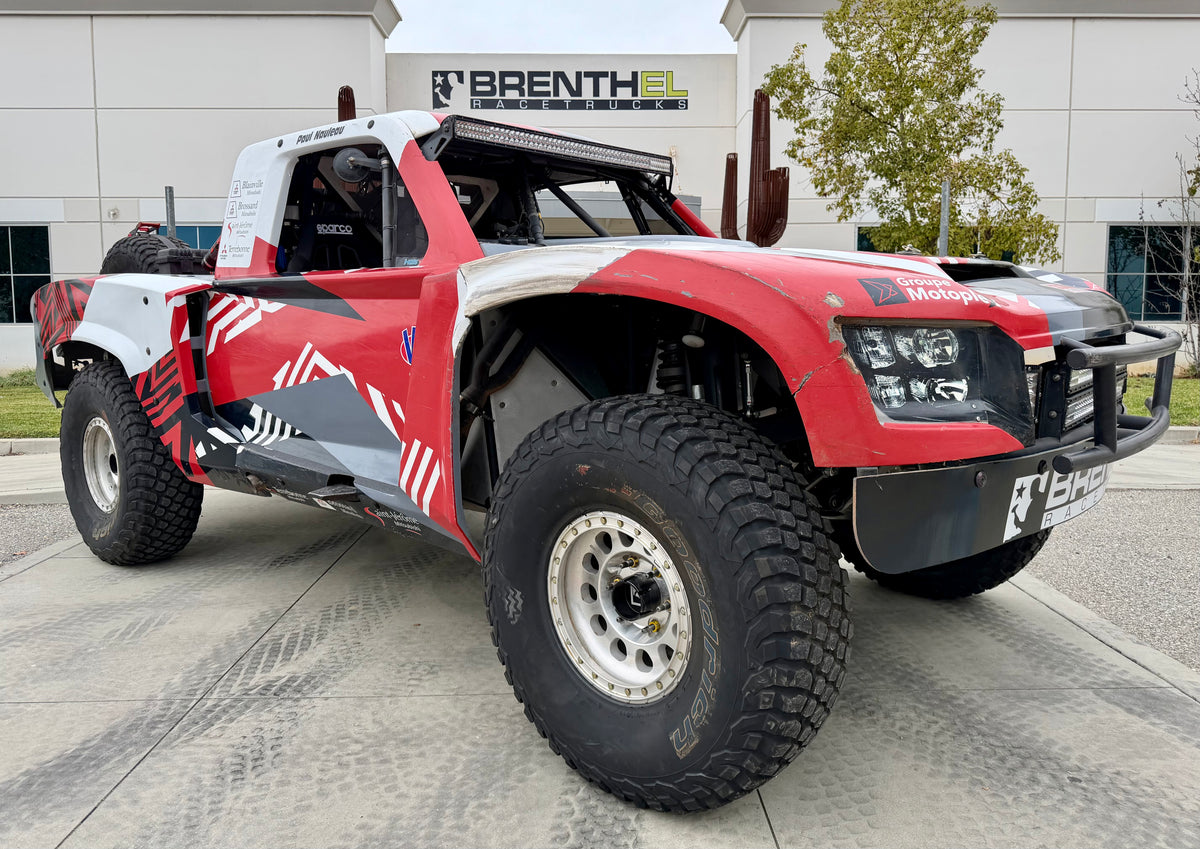

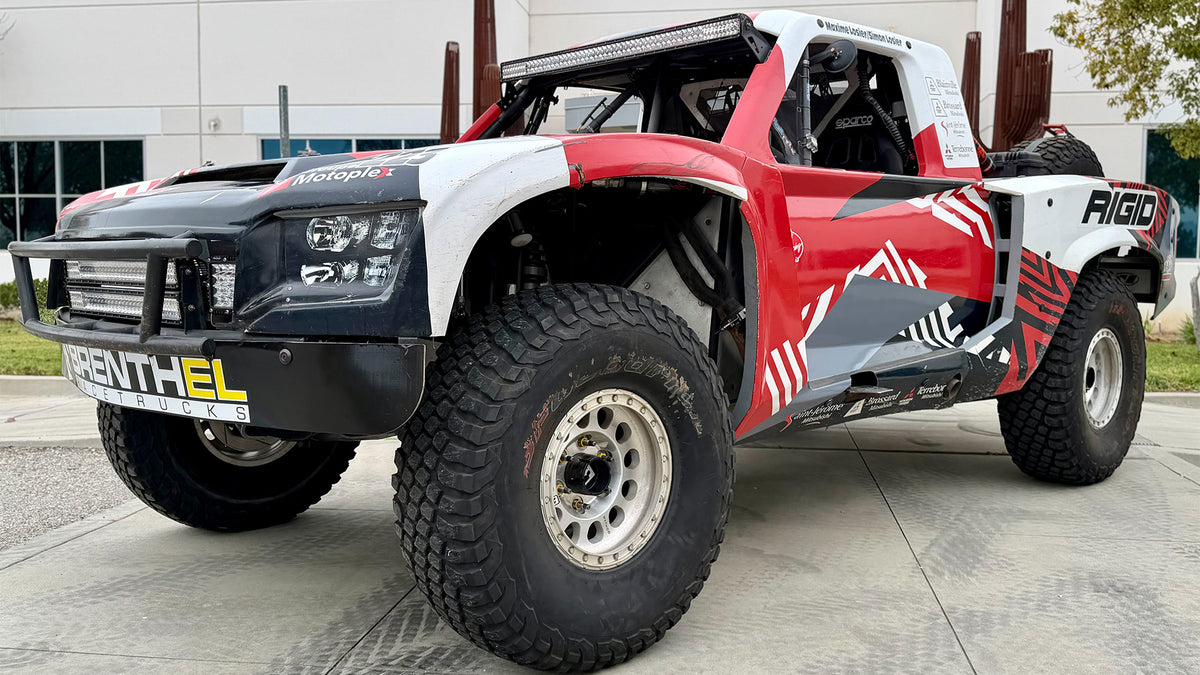

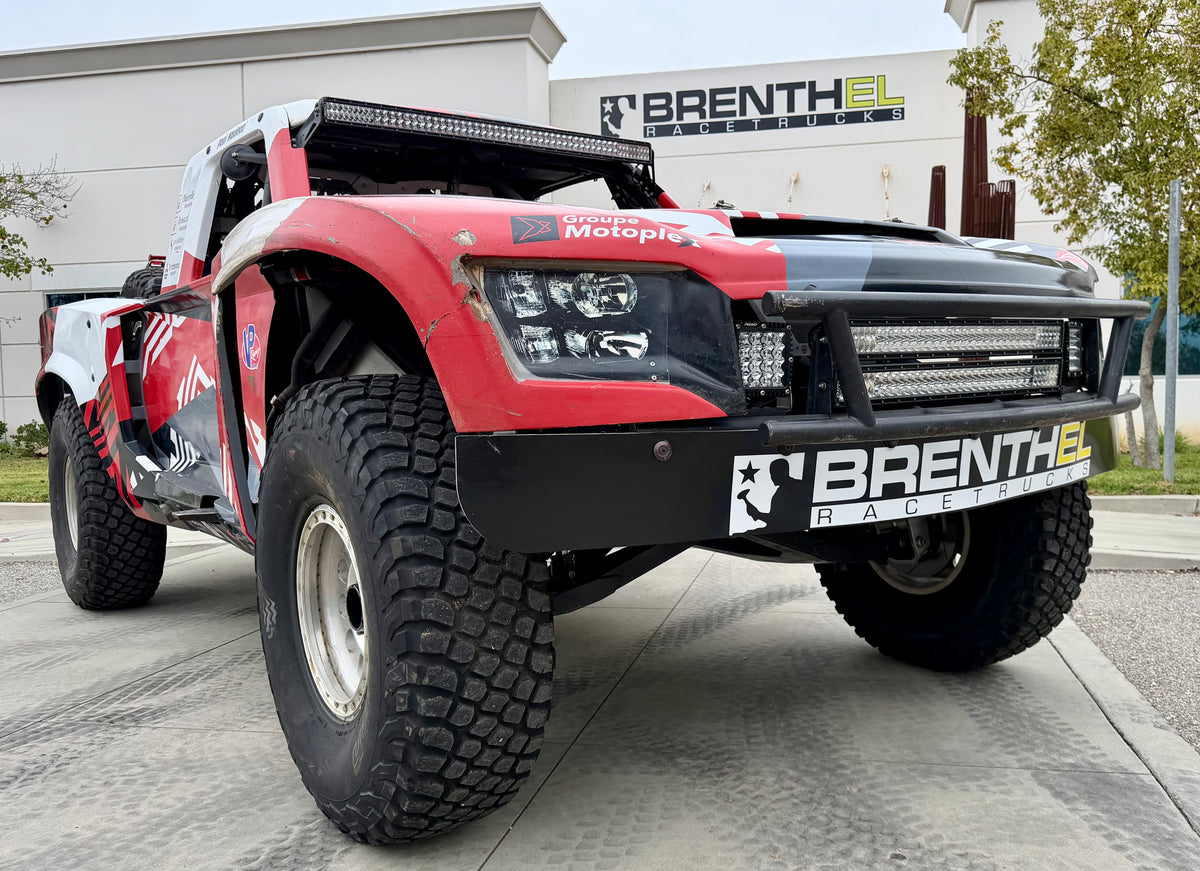

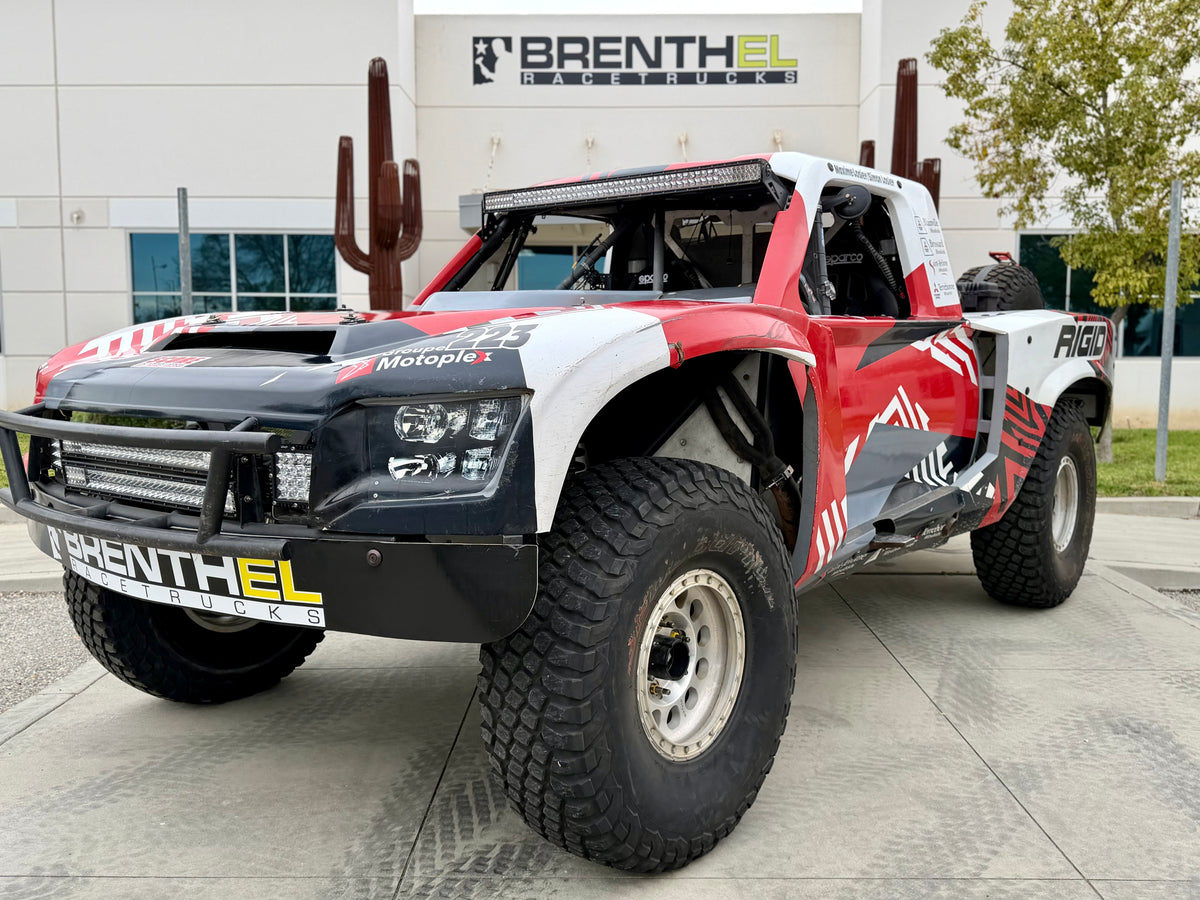

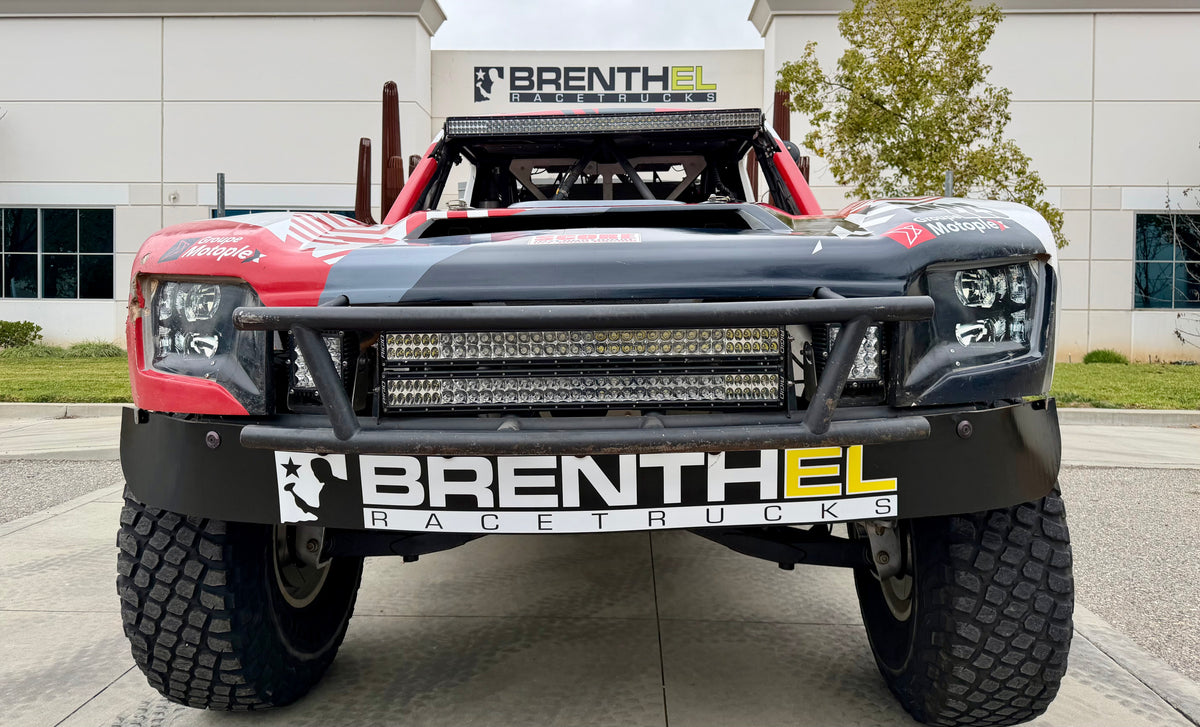

BRENTHEL GEN 3.5 SPEC TROPHY TRUCK

Will Entertain All Offers, Trades, Payments, etc.

**We accept Crypto – BTC, ETH**

$320k

**Truck Chassis / Frame:
SCORE Legal Trophy Truck Chassis
100% CAD designed, chassis, arms, geometry & fixtures for precision fitment of all parts with / 4130 Tubing CNC cut and fixtures
All Mil Spec Aircraft Hardware on pivot points and suspension
Chassis Sandblasted and SteeliT painted
100% 4130 plate and tubing

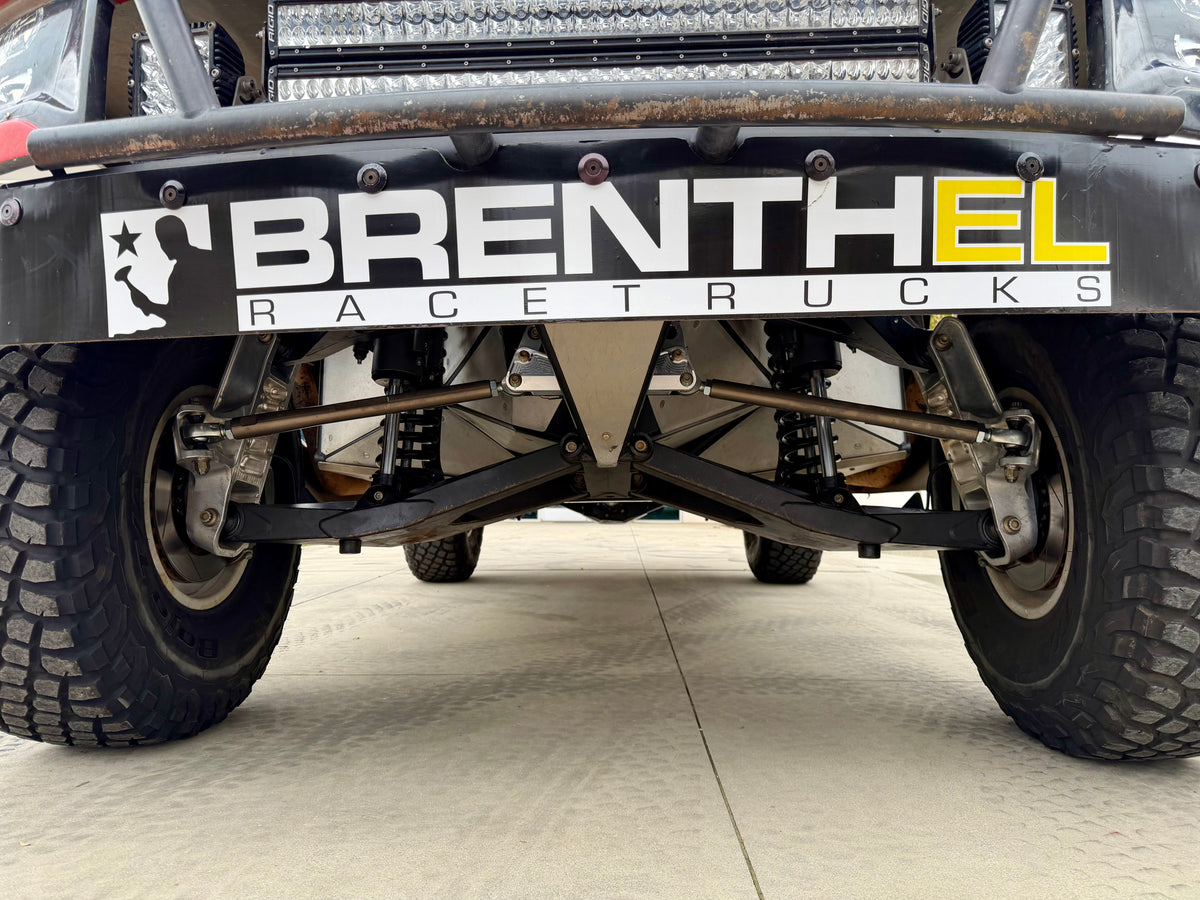

Trophy Truck Suspension:
3.0″ FOX coilovers proprietary valving
4.5″ FOX Bypass proprietary valving
2.5″ 4130 Hollow bolt on front snout
7075 Aircraft billet hubs
4130 – Upper and Lower Control Arms
Billet – Uprights with new 2″ Drop to lower Center of Gravity

Rear Suspension:
3.0″ FOX coilovers w/ proprietary valving
4.5″ FOX  Bypasss w/ proprietary valving – Trailing arms
Billet Trailing Arms

Steering Setup:
LEE pump
LEE Steering Box

Drivetrain:
LS3 (Purchased from Turnkey, Wired and Tuned by Danzio)
Turbo 400 Culhane Trans with Fortin Underdrive
Custom B.I. Stainless Headers w/ precision fitment & specifications
4″ Custom 4130 Housing (Completely Tig Welded with Billet Mounts)
10″ Gearworks 3rd Member
6 piston Alcon Calipers w/ Floating Rotors and hardware
Dual alternators
3.25″ 4130 spindles
1480 Driveline with Abro (High Speed Balance)
Fuel System – Redundant Weldon Dual Fuel Pumps
95 gal. Harmon fuel cell, FIA & SCORE legal

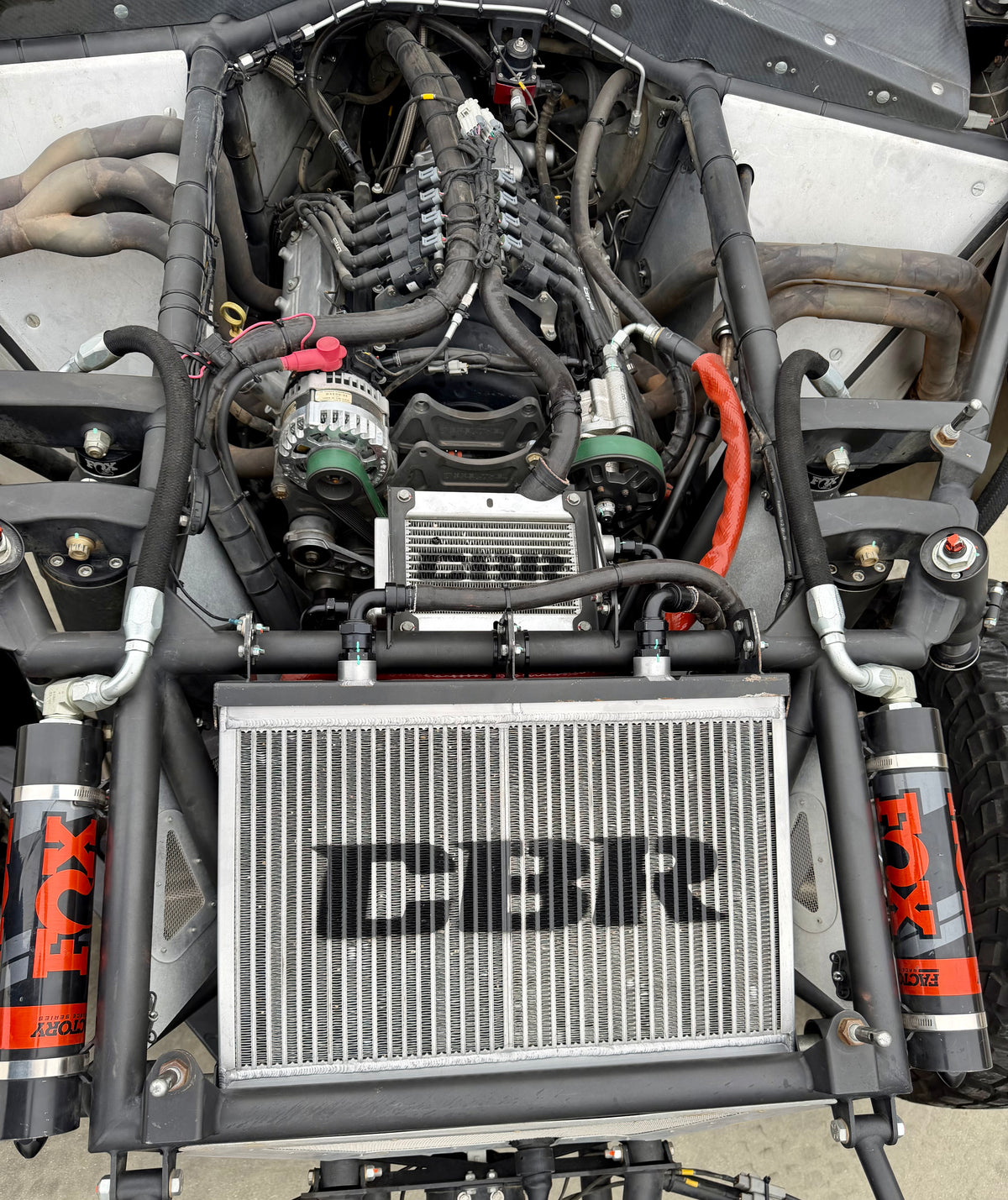

Cooling System:
CBR radiator
Custom radiator lines w/ silicone hose / Oil Cooler / Trans Cooler / PS Cooler
CBR Radiator

Interior:Seat Sliders (Included Driver & Passenger)
Fire Suppression system
2- Sparco seats
2- Impact CamLock Harnesses
Driver – 7″ Elite HDS GPS / Passenger 12″ GPS
2 – Total Power battery
LIFE Display on Driver & Passenger
Wiring / Electrical- Data Logging Included- Speed Pit Limiter Included- Brake Pressure Sensors- Engine Temp / Oil Temp / Fuel Pressure /

Body:
Full fiberglass body with Aluminum Paneling

Wheels and Tires:
6-17″ Method beadlock wheels
6 -40″ BFG Tires
