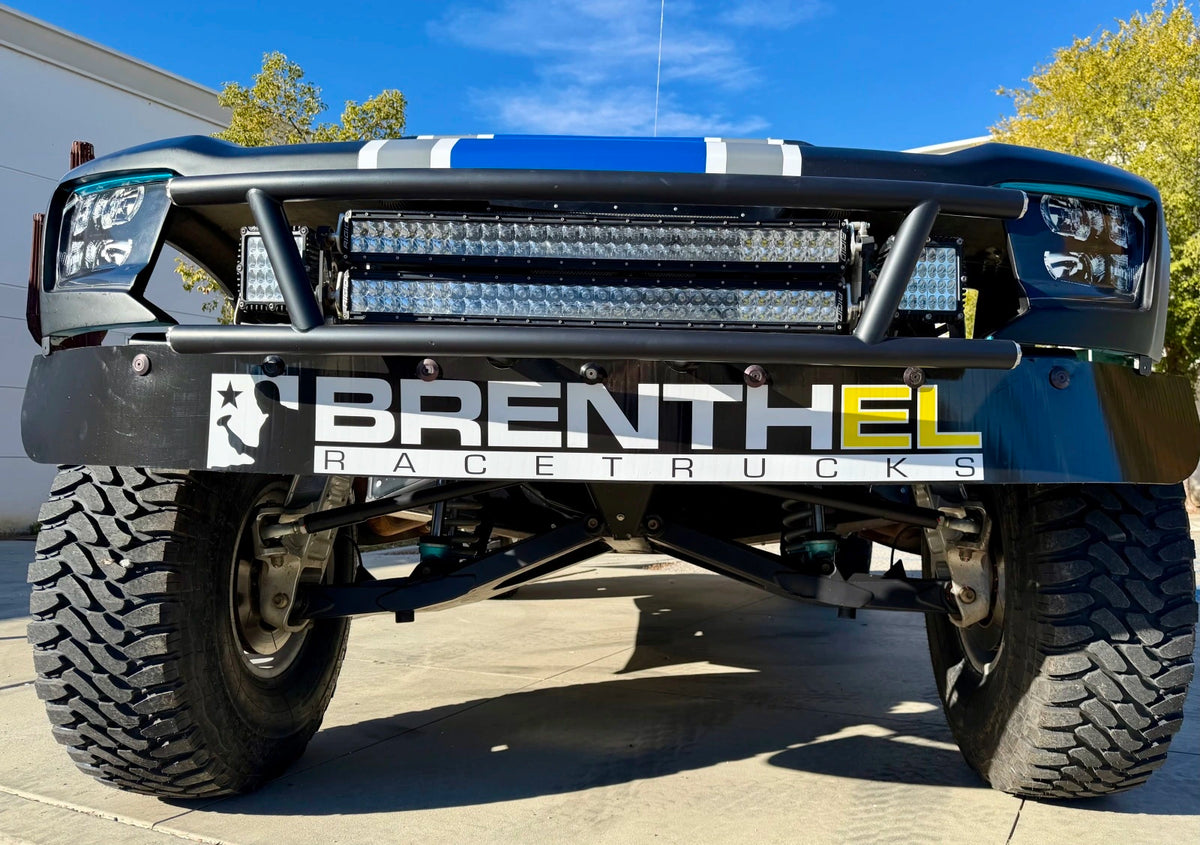

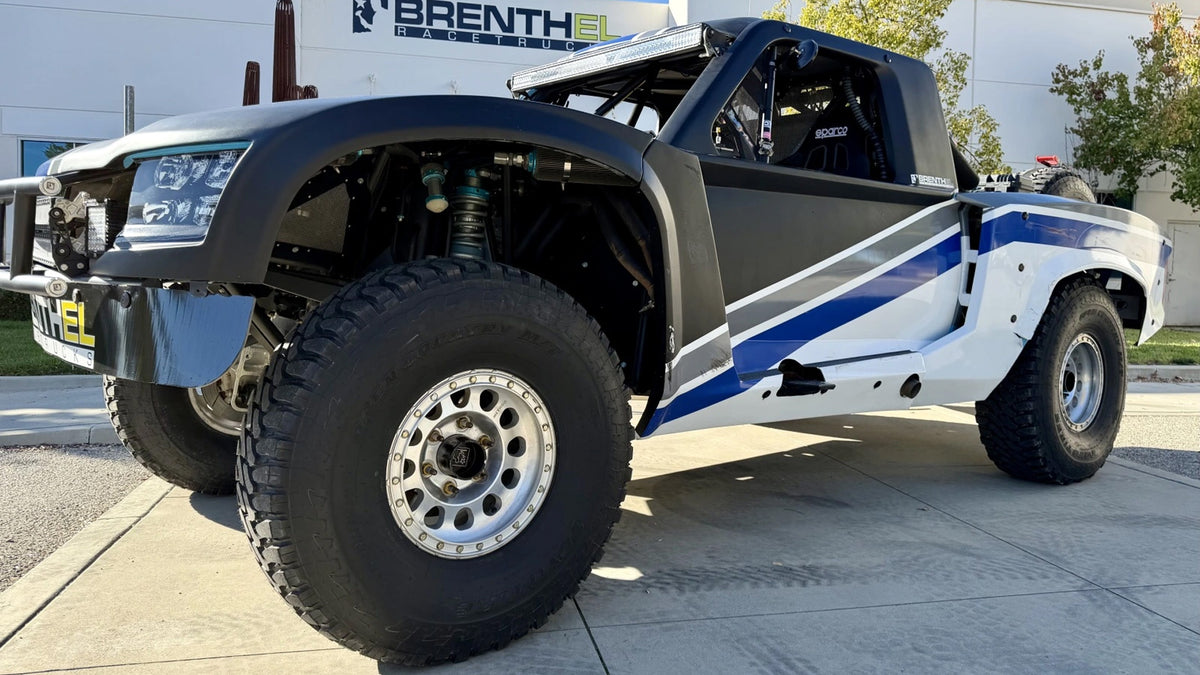

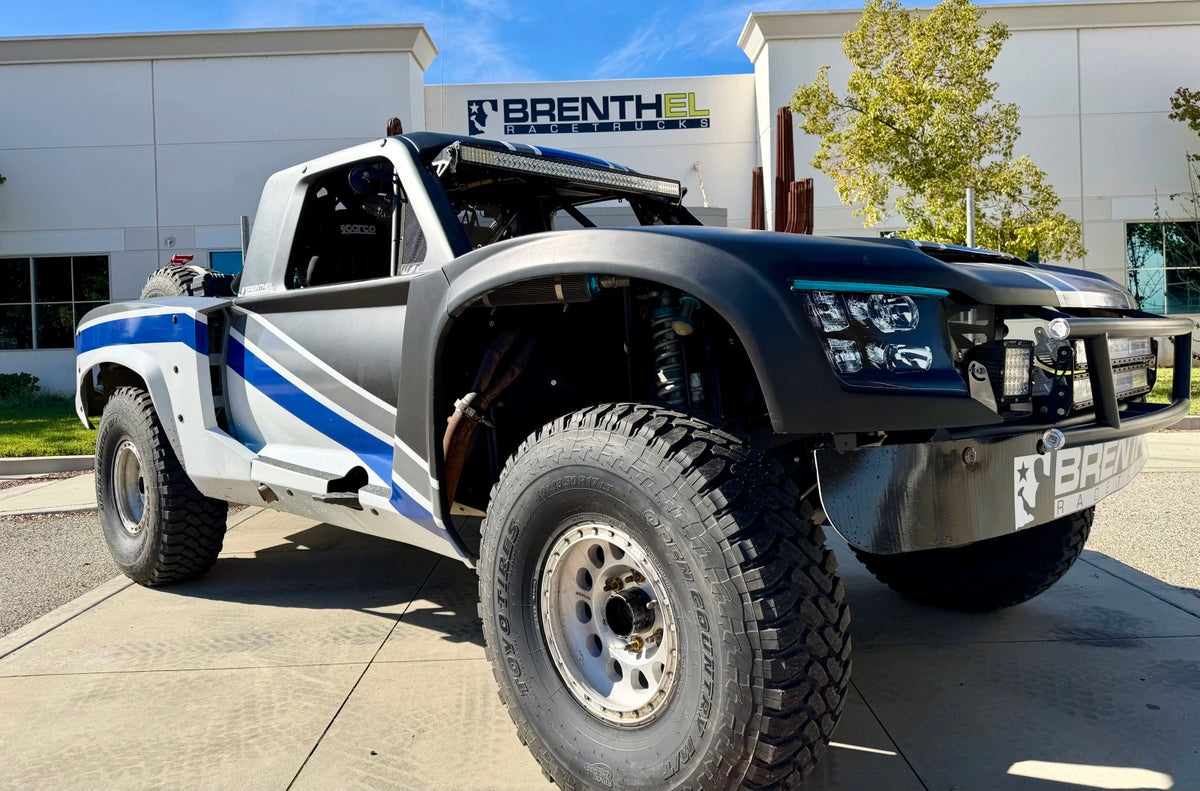

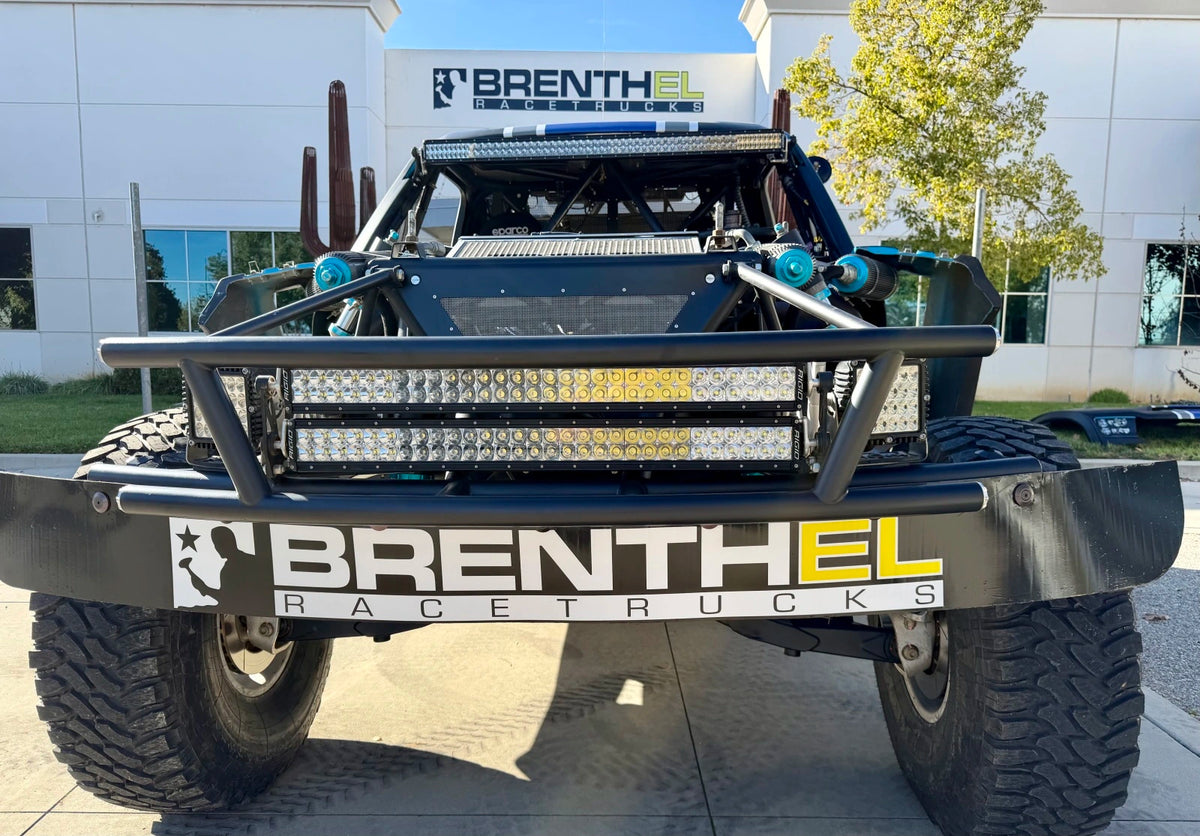

BRENTHEL GEN 3.5 SPEC TROPHY TRUCK

Torn down to bare chassis, updated to a 3.5, sandblasted and painted. This is as fresh as it gets. Everything has been refreshed on this truck.

Will Entertain All Offers, Trades, Payments, etc.

**We accept Crypto – BTC, ETH**

**Truck Chassis / Frame:
SCORE Legal Trophy Truck Chassis
100% CAD designed, chassis, arms, geometry & fixtures for precision fitment of all parts with / 4130 Tubing CNC cut and fixtures
All Mil Spec Aircraft Hardware on pivot points and suspension
Chassis Sandblasted and SteeliT painted
100% 4130 plate and tubing

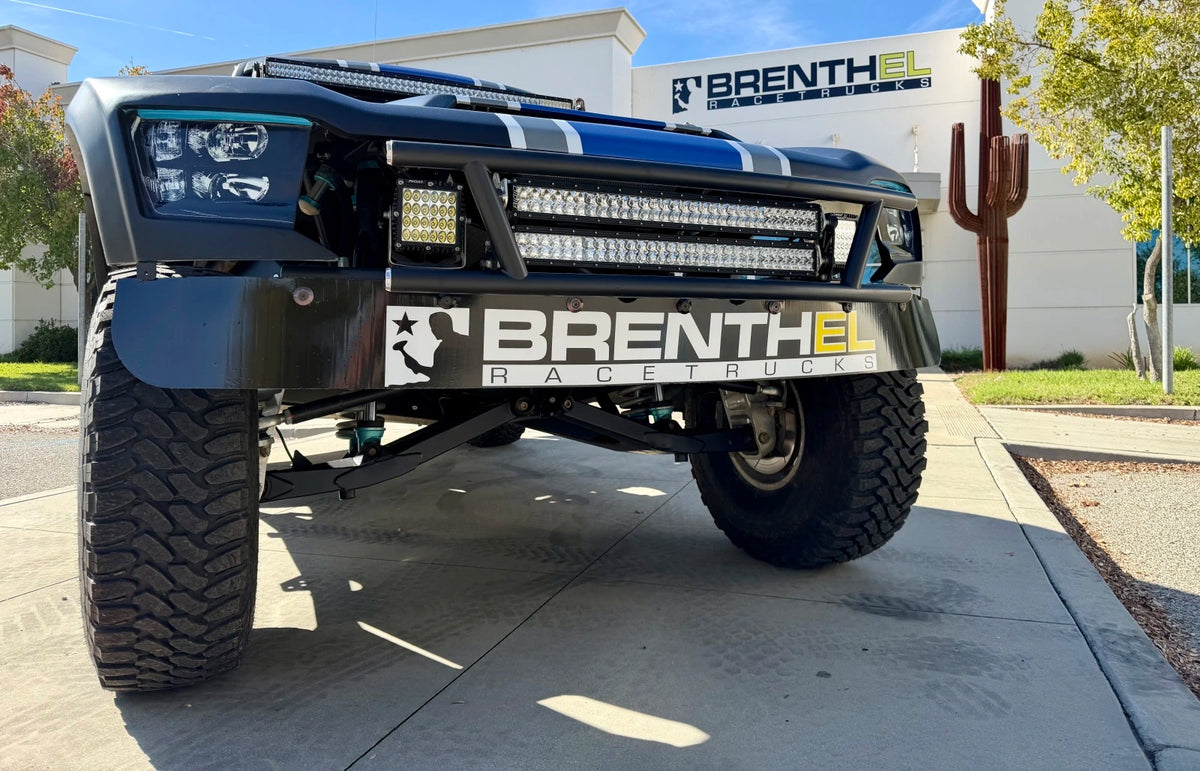

Trophy Truck Suspension:
3.0″ KING coilovers SDG proprietary valving
4.5″ KING Bypass SDG proprietary valving
2.5″ 4130 Hollow bolt on front snout
7075 Aircraft billet hubs
4130 – Upper and Lower Control Arms
Billet – Uprights with new 2″ Drop to lower Center of Gravity

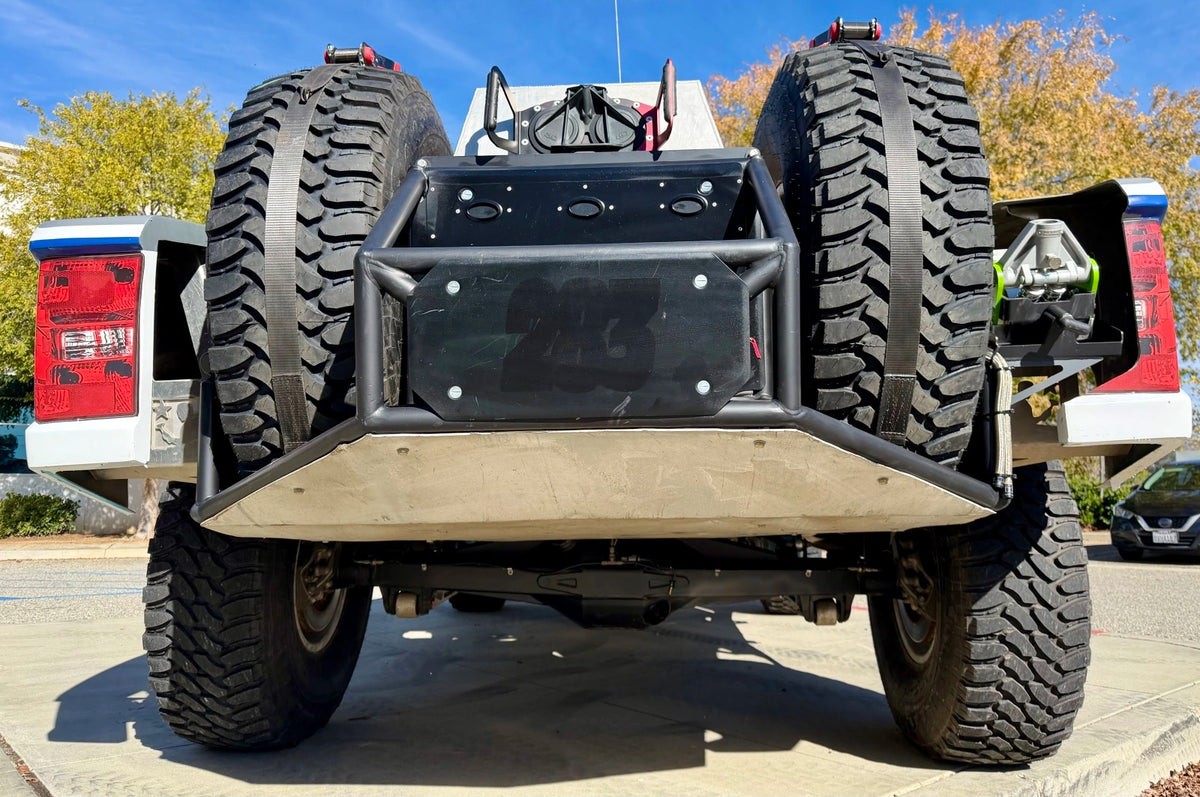

Rear Suspension:
3.0″ KING coilovers w/ SDG proprietary valving
4.5″ KING Bypasss w/ SDG proprietary valving – Trailing arms
Billet Trailing Arms

Steering Setup:
Power Steering – PSS PS Pump
Lee – Steering Box with Billet Adapter and 4130 Swingers
B.I. Steering column assy. W/ 4130 shaft & sealed bearings

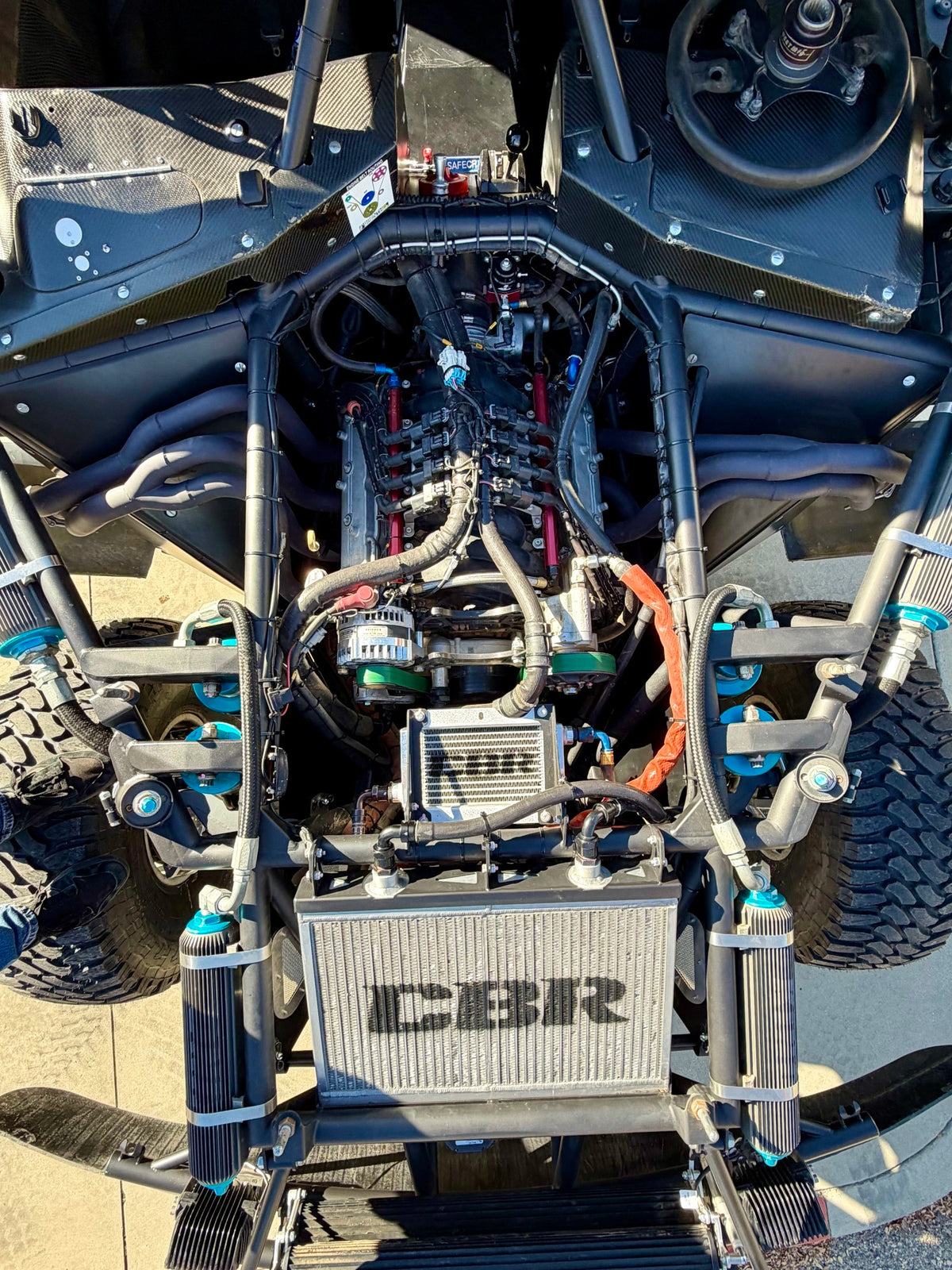

Drivetrain:
LS3 (Purchased from Turnkey, Wired and Tuned by Danzio)
Turbo 400 Culhane Trans with Fortin Underdrive
Custom B.I. Stainless Headers w/ precision fitment & specifications
4″ Custom 4130 Housing (Completely Tig Welded with Billet Mounts)
10″ Gearworks 3rd Member
6 piston Alcon Calipers w/ Floating Rotors and hardware
3.25″ 4130 spindles
1480 Driveline with Abro (High Speed Balance)
Fuel System – Redundant Weldon Fuel Pumps
95 gal. fuel cell, FIA & SCORE legal

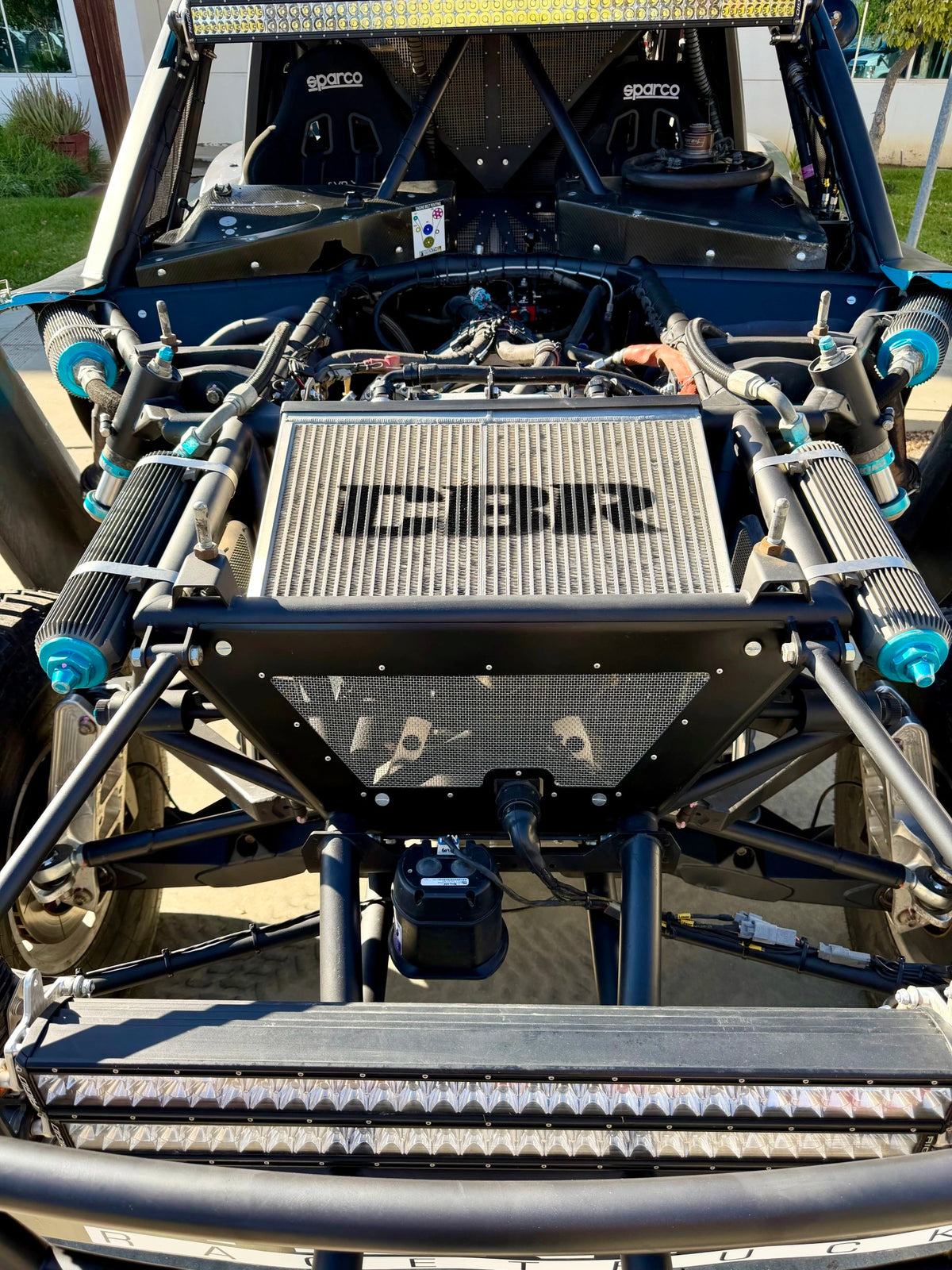

Cooling System:
Custom double pass radiator w/ 2-14″ elec fans
Custom radiator lines w/ silicone hose / Oil Cooler / Trans Cooler / PS Cooler

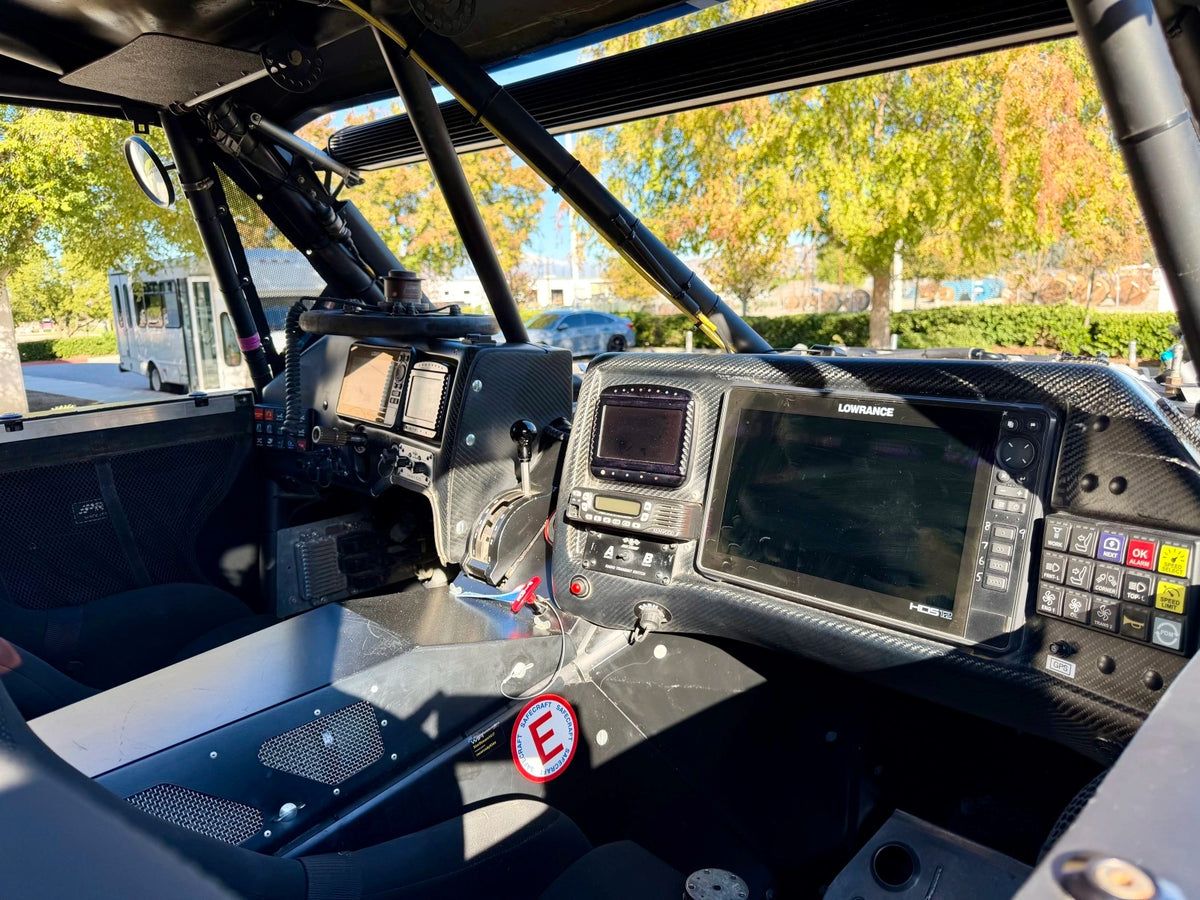

Interior:Seat Sliders (Included Driver & Passenger)
Carbon Dash
Fire Suppression system
2- Sparco Seats
2- Impact CamLock Harnesses
Driver – 5″ Elite HDS GPS / Passenger 12″ GPS
2 – Total Power battery
LIFE Display on Driver & Passenger
Wiring / Electrical- Data Logging Included- Speed Pit Limiter Included- Brake Pressure Sensors- Engine Temp / Oil Temp / Fuel Pressure /

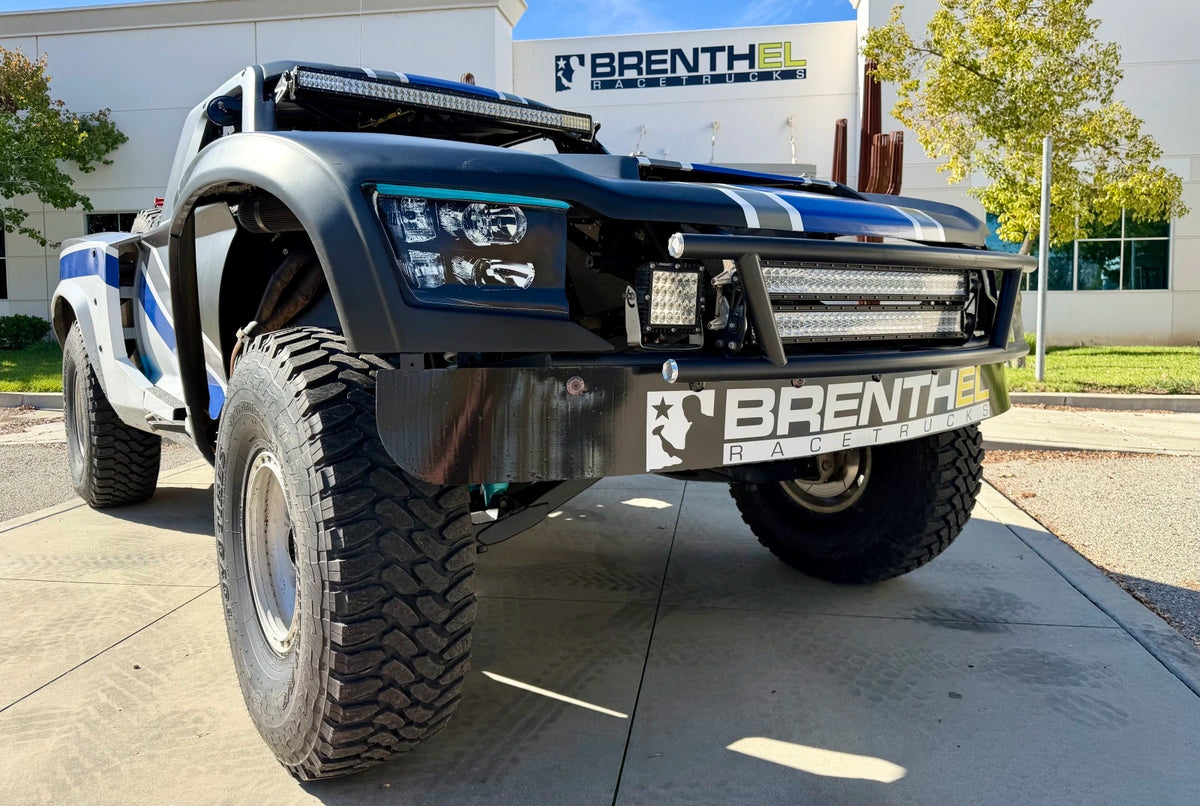

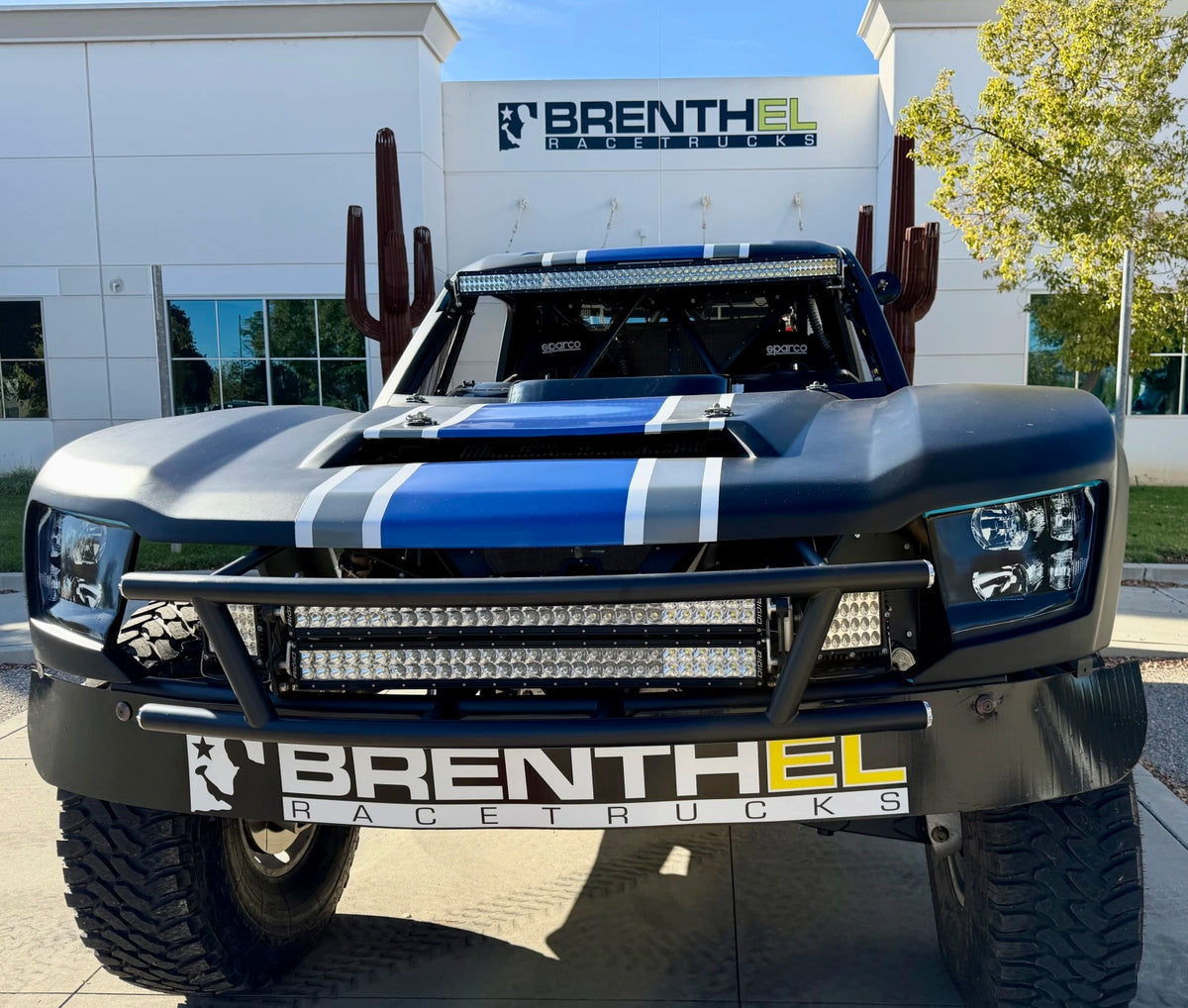

Body:
Full fiberglass body with Aluminum Paneling

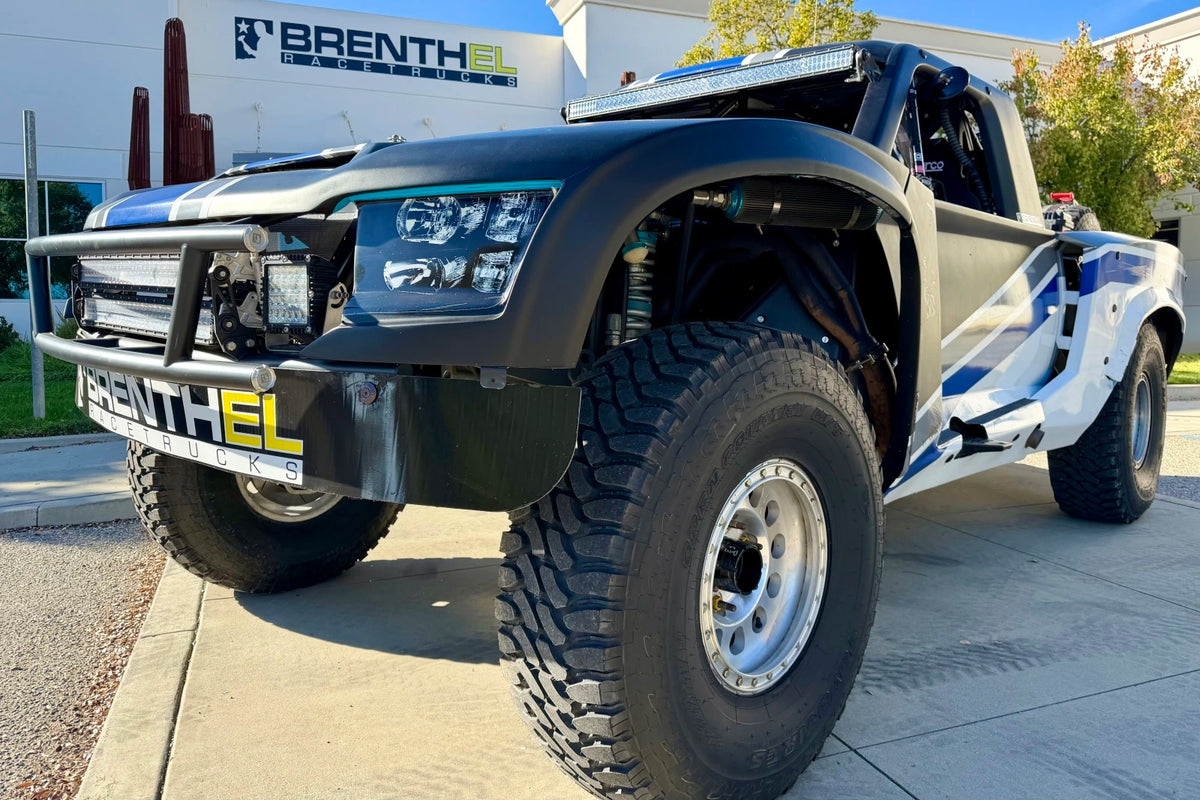

Wheels and Tires:
6-17″ Method beadlocked wheels
6 -40″ NEW Tires
