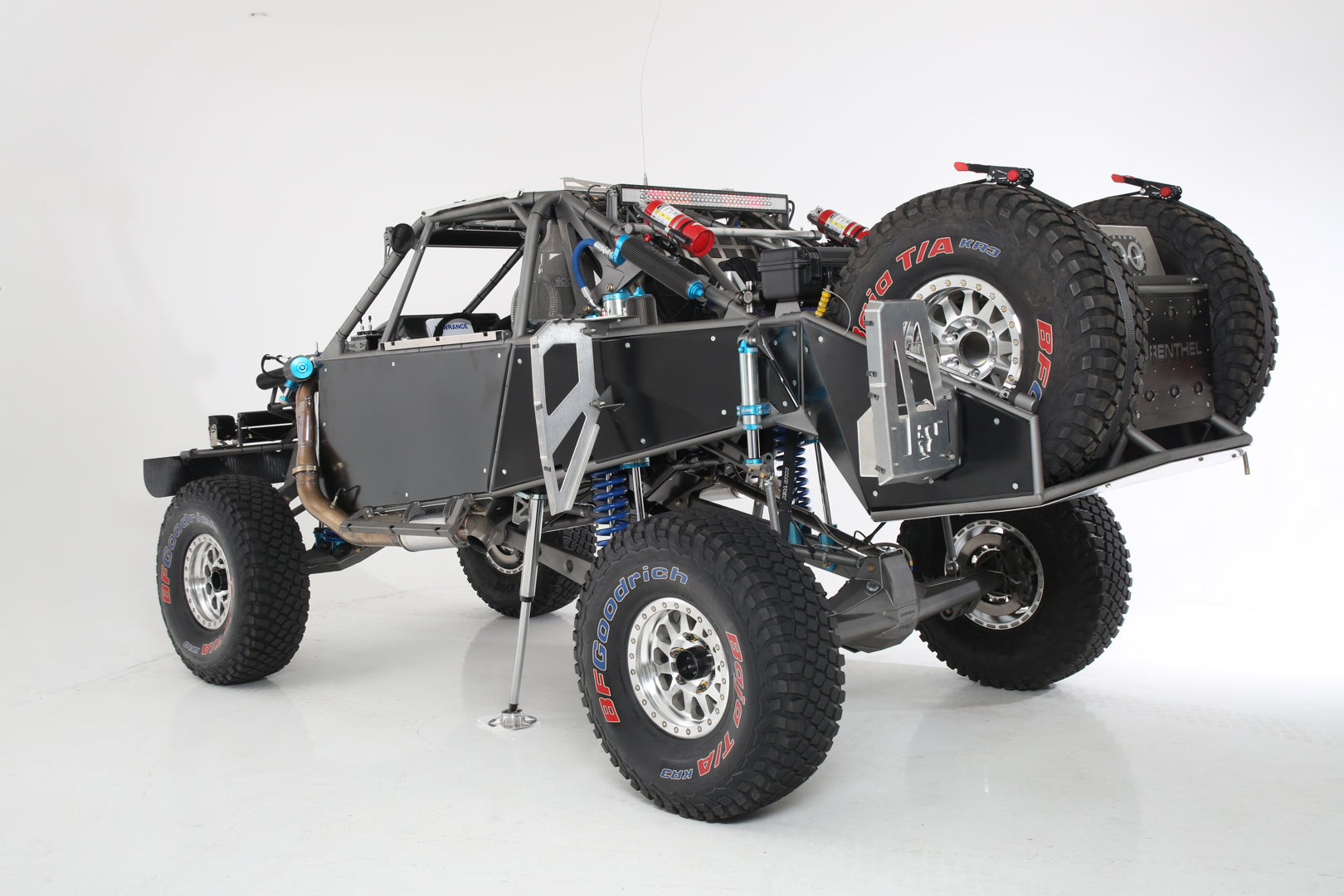

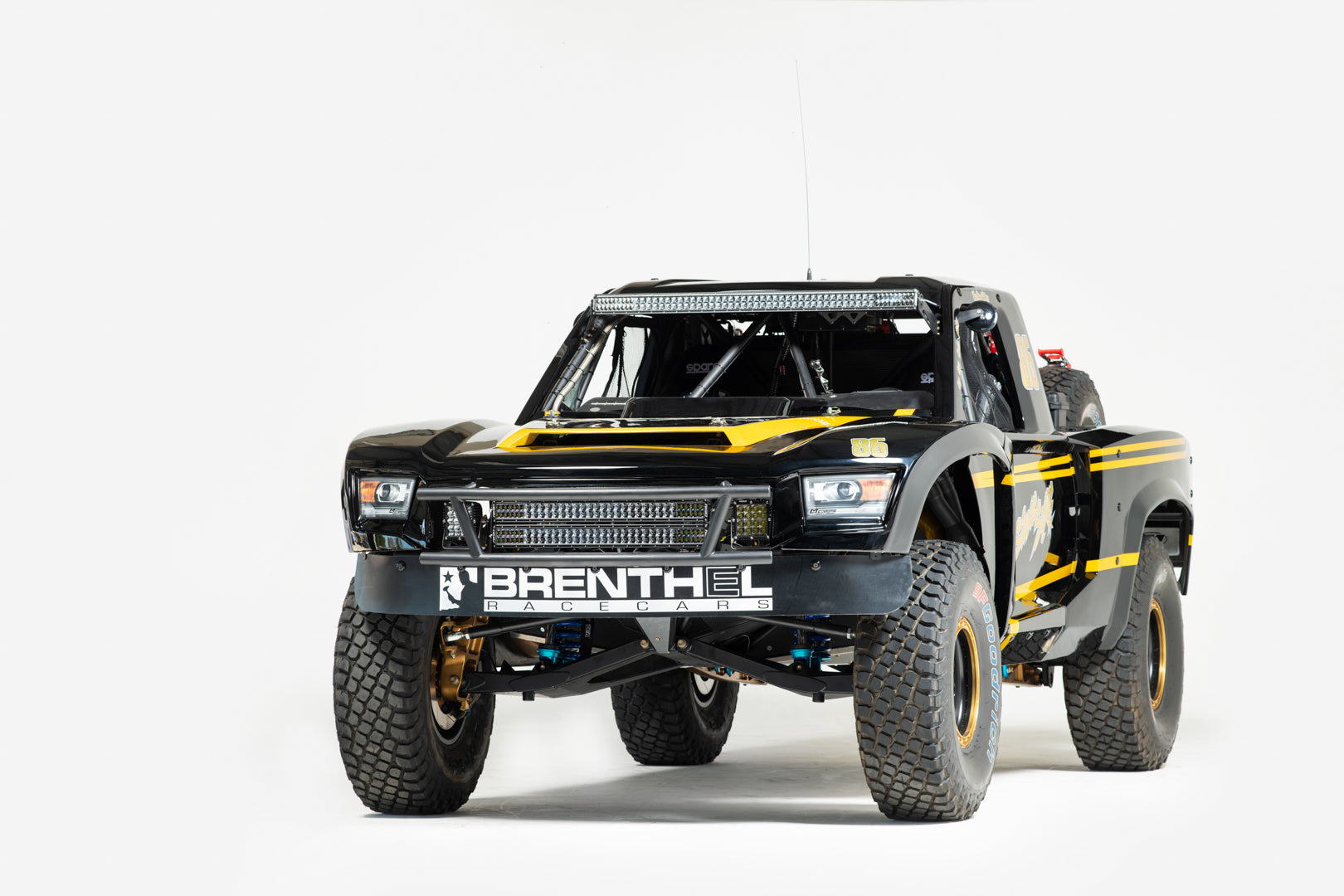

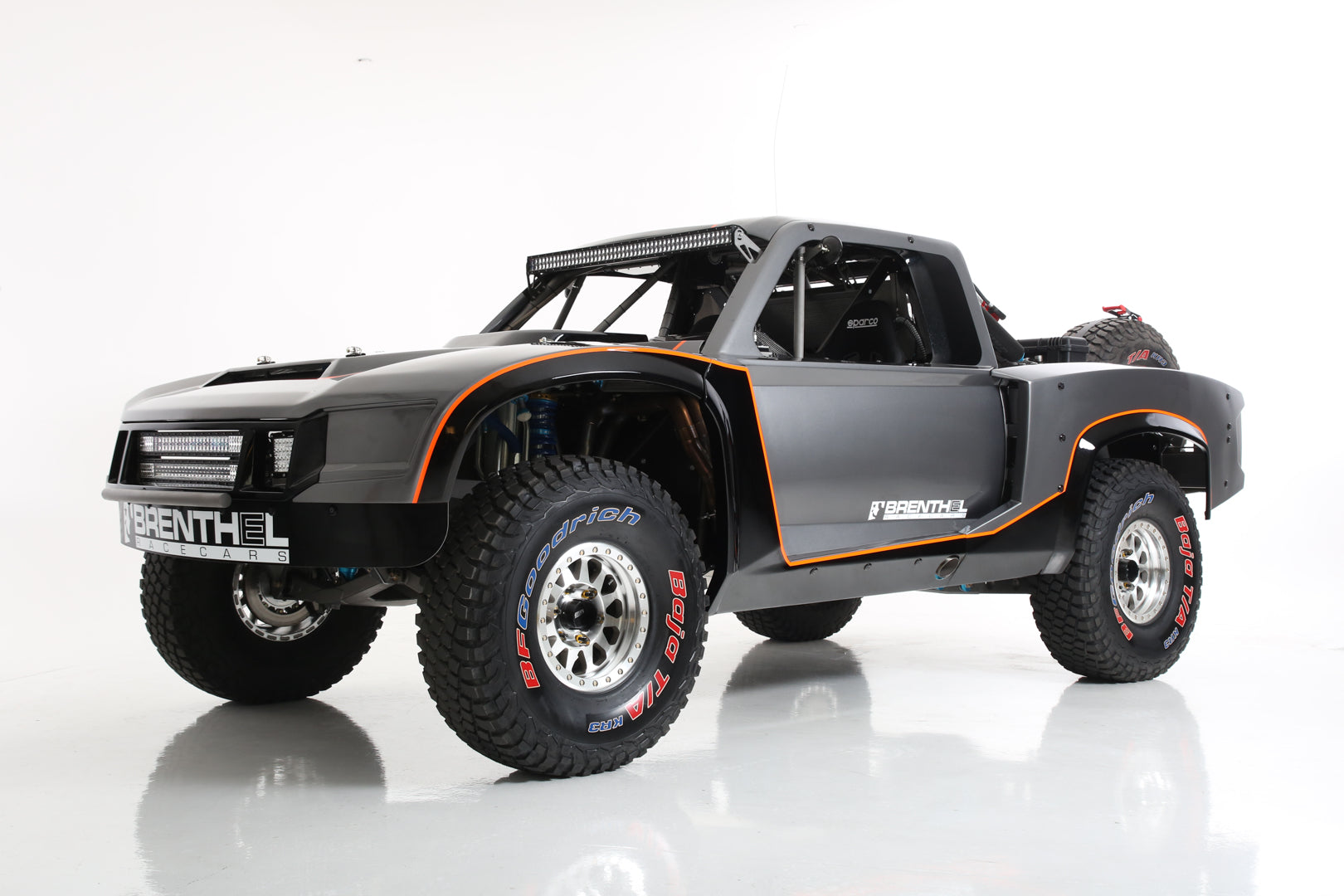

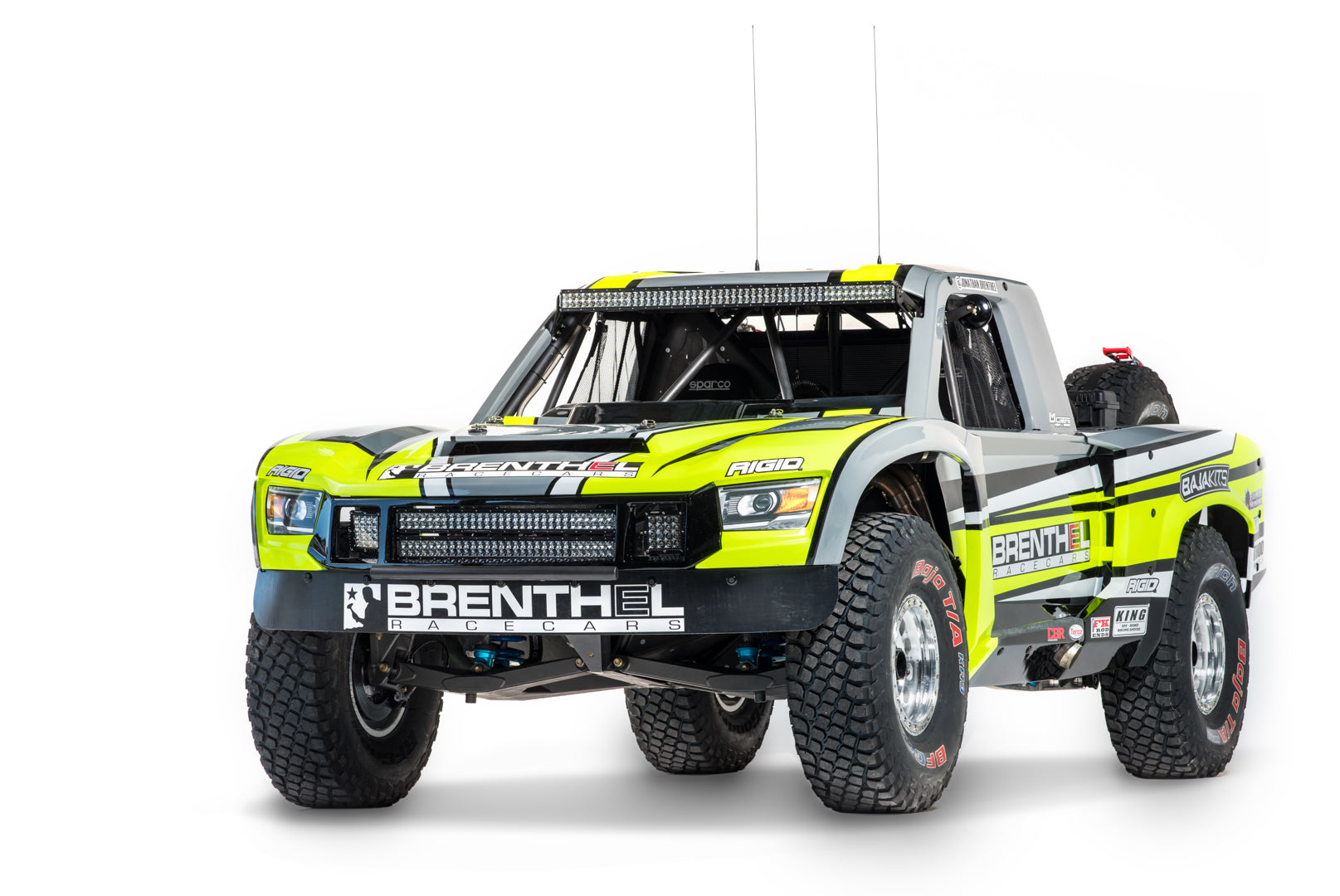

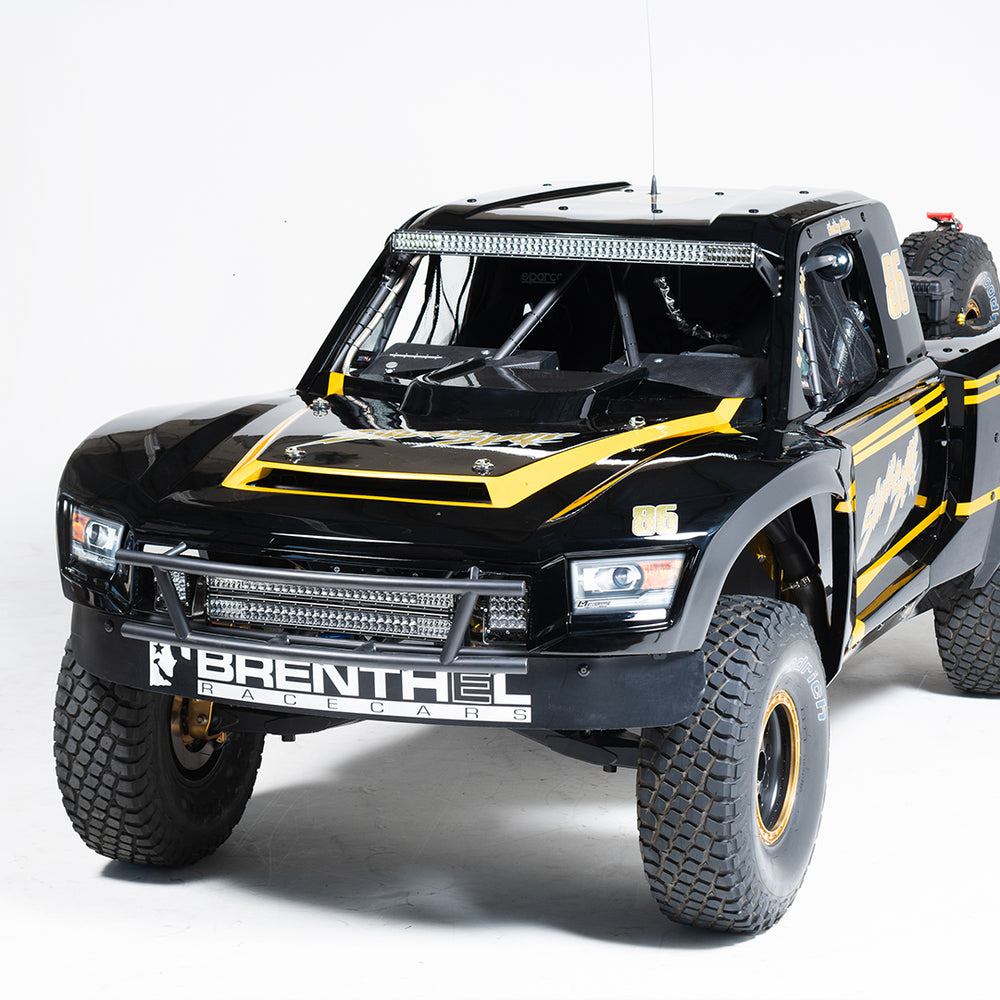

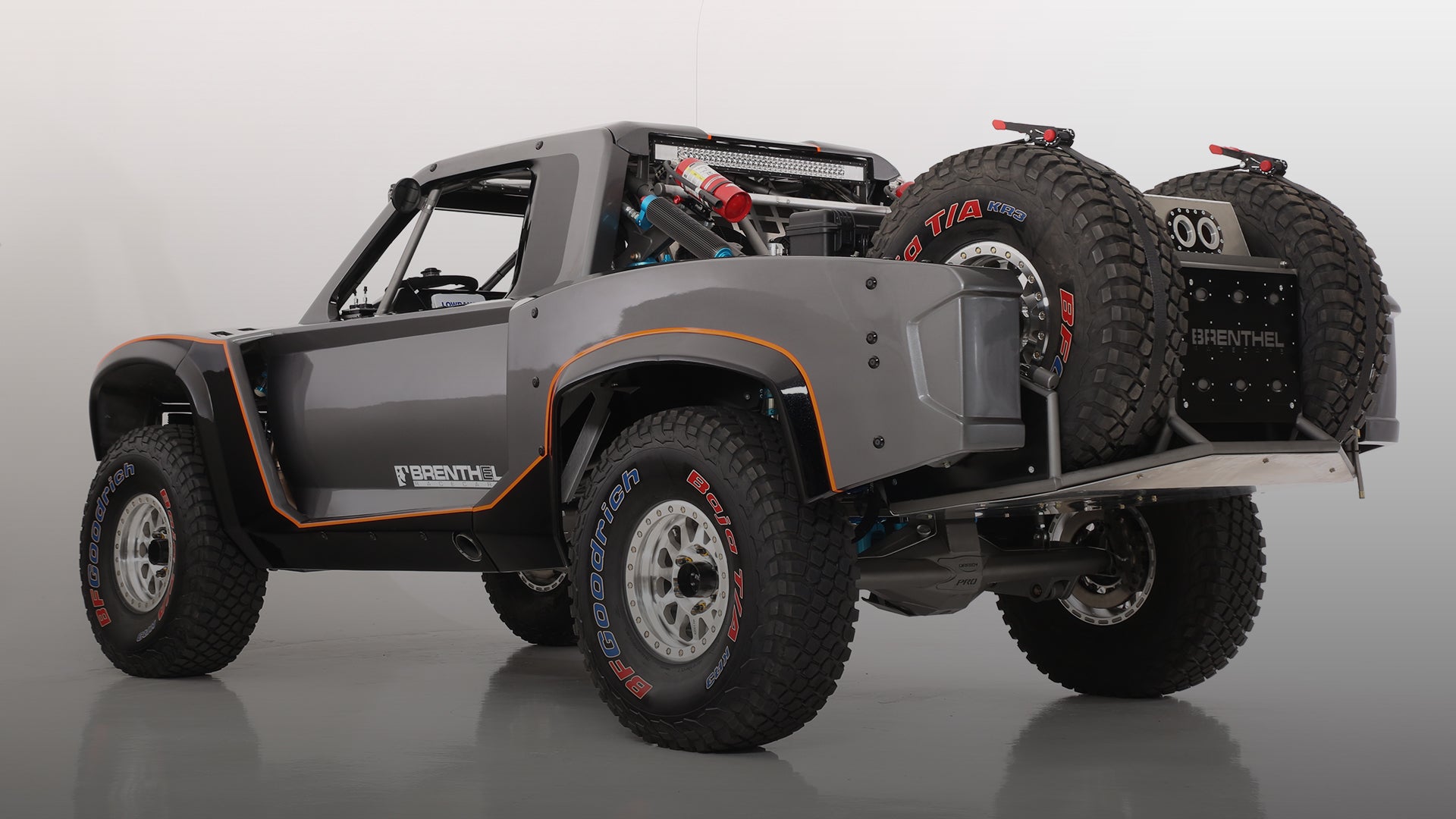

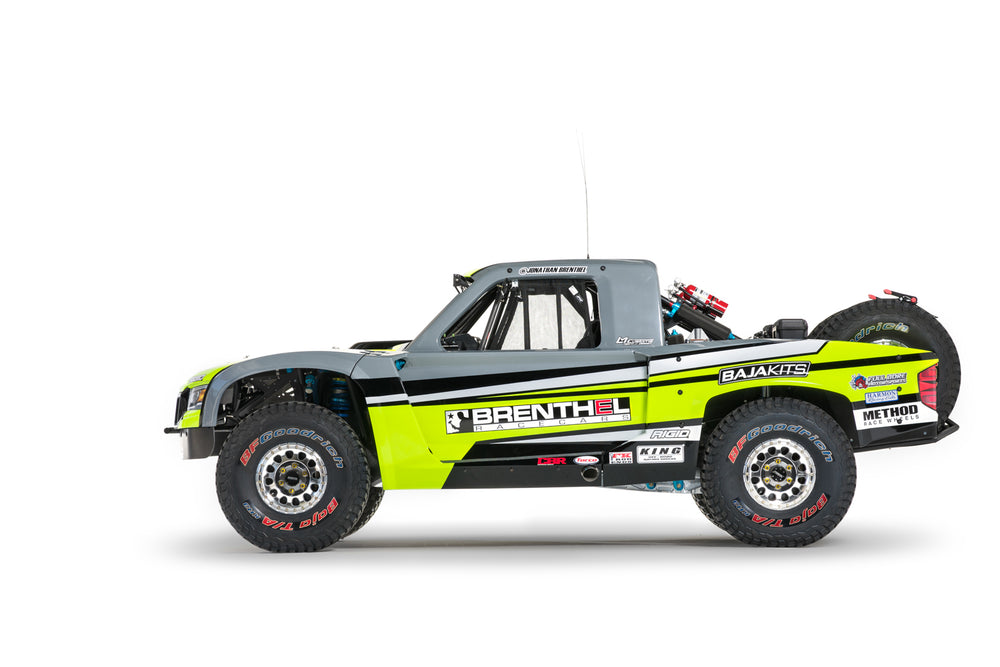

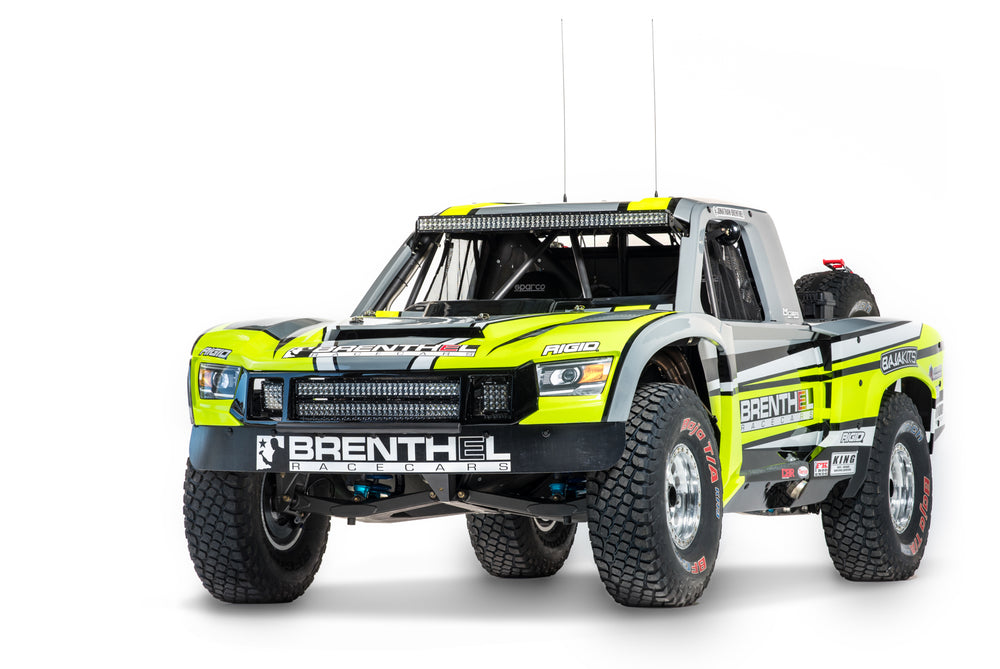

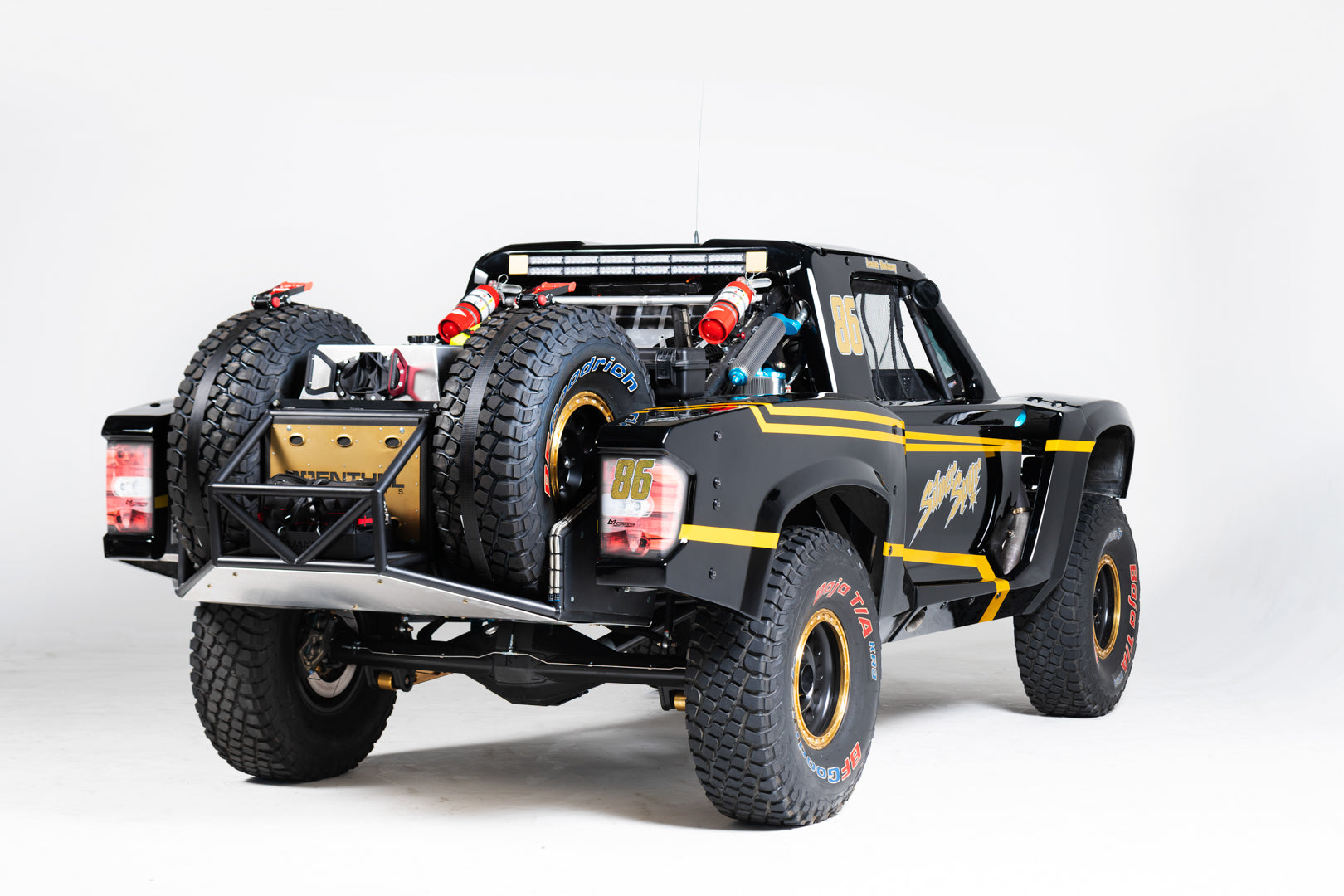

2WD TT
The 2WD TT redefines off-road performance with precision engineering and proven race-ready design. Crafted to conquer the harshest terrain, it delivers blistering acceleration, razor-sharp handling, and rock-solid control. Built for experienced racers and rising talent alike, it stands as a premier platform that sets the standard for modern off-road competition.
FULL SPECIFICATIONS

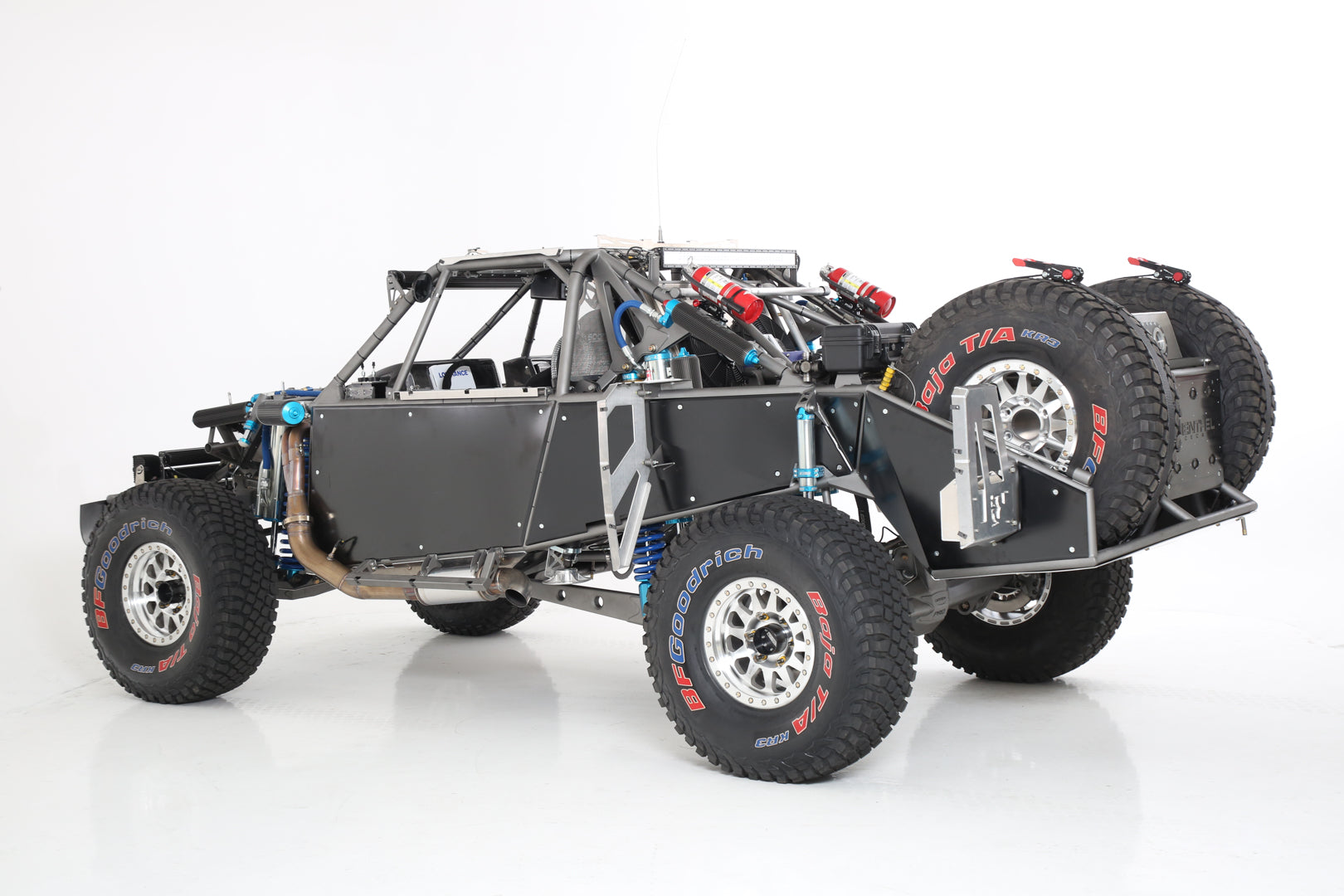

• SCORE Legal Trophy Truck Chassis

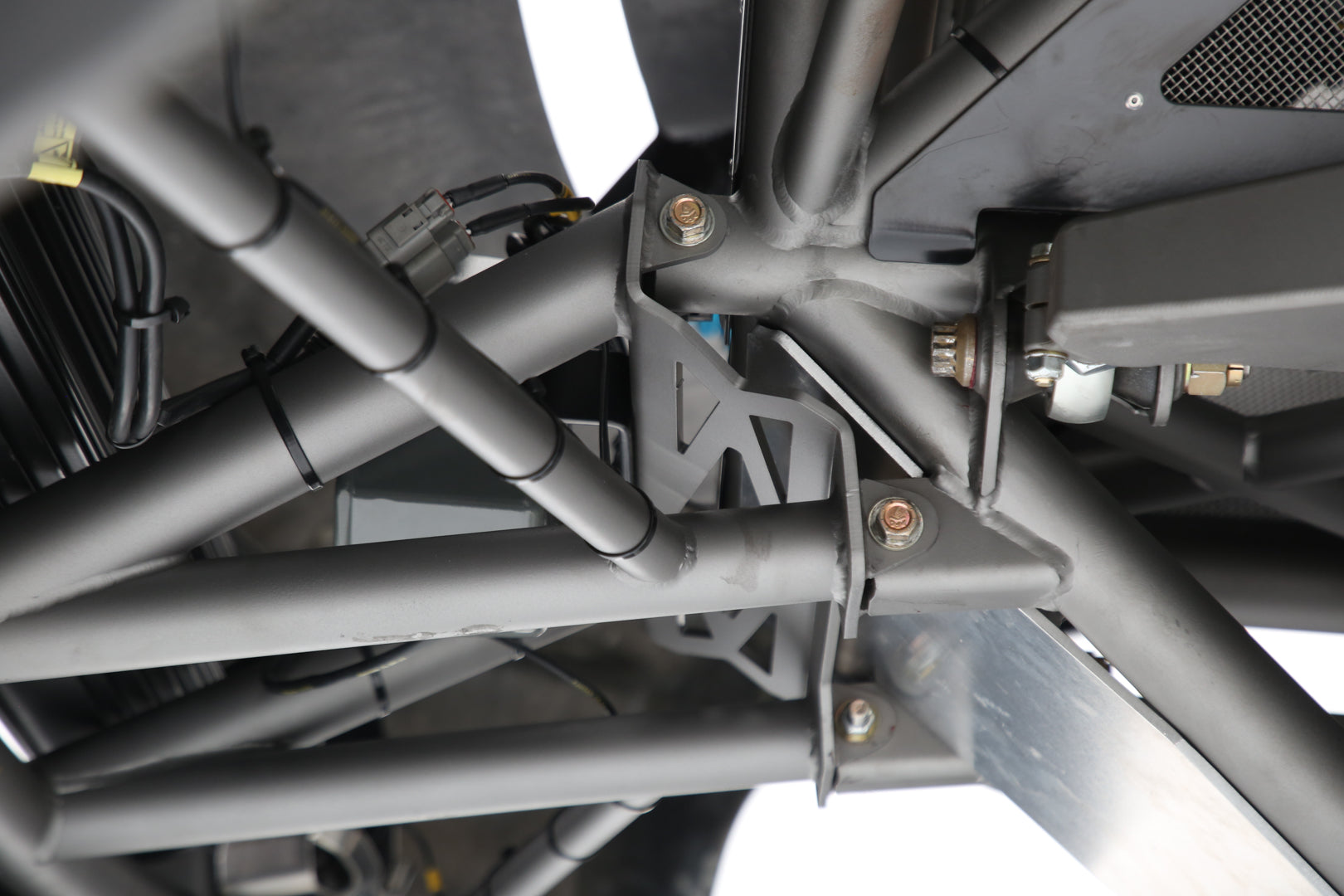

• 100% CAD designed, chassis, arms, geometry & fixtures for precision fitment of all parts
• All 4130 Tubing CNC cut and fixtures
• All Mil Spec Aircraft Hardware on pivot points and suspension
• Chassis Sandblasted and SteeliT painted
• Engineered using 3D CAD to be as light and strong as possible
• 100% Boxed with 4130 plate and tubing

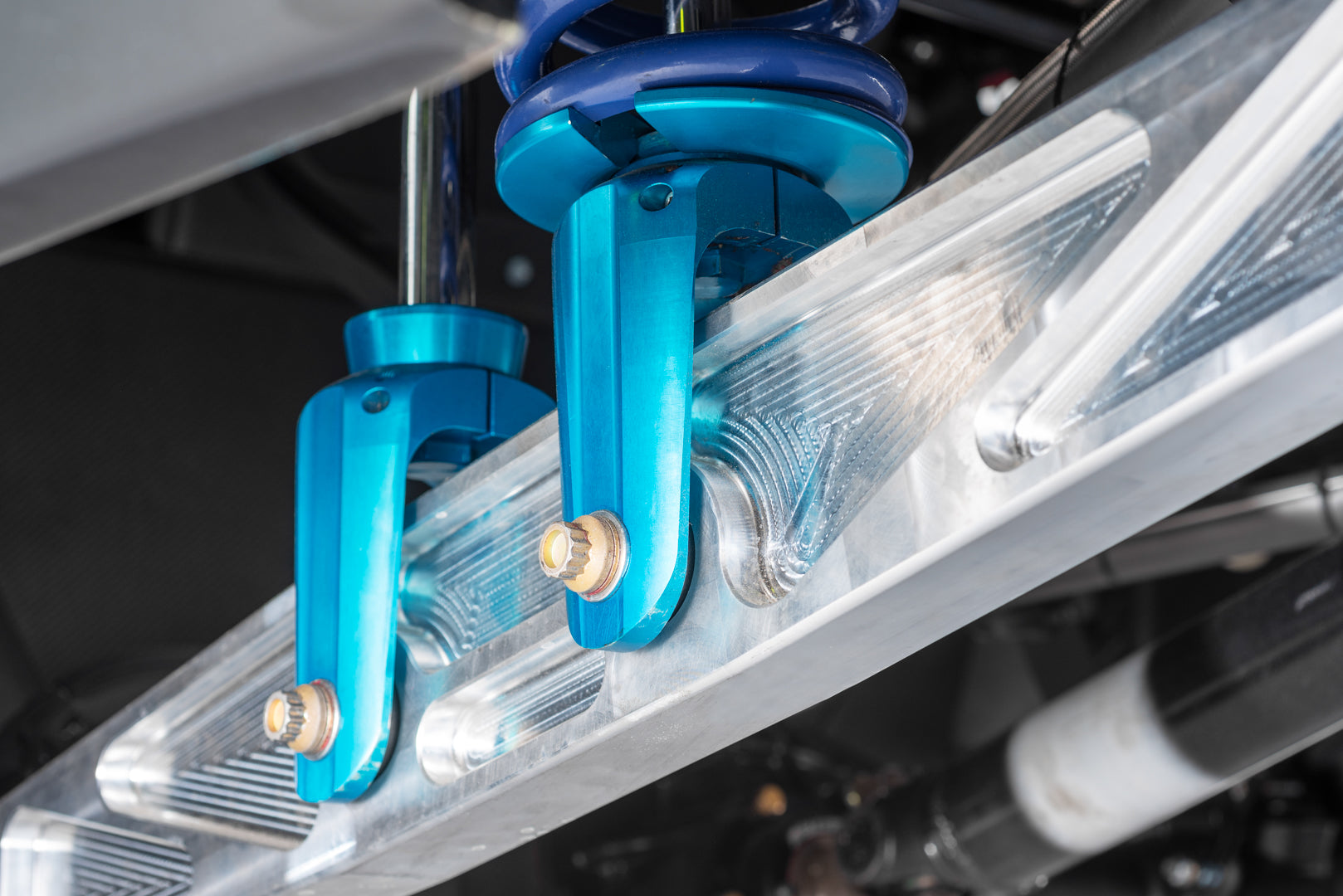

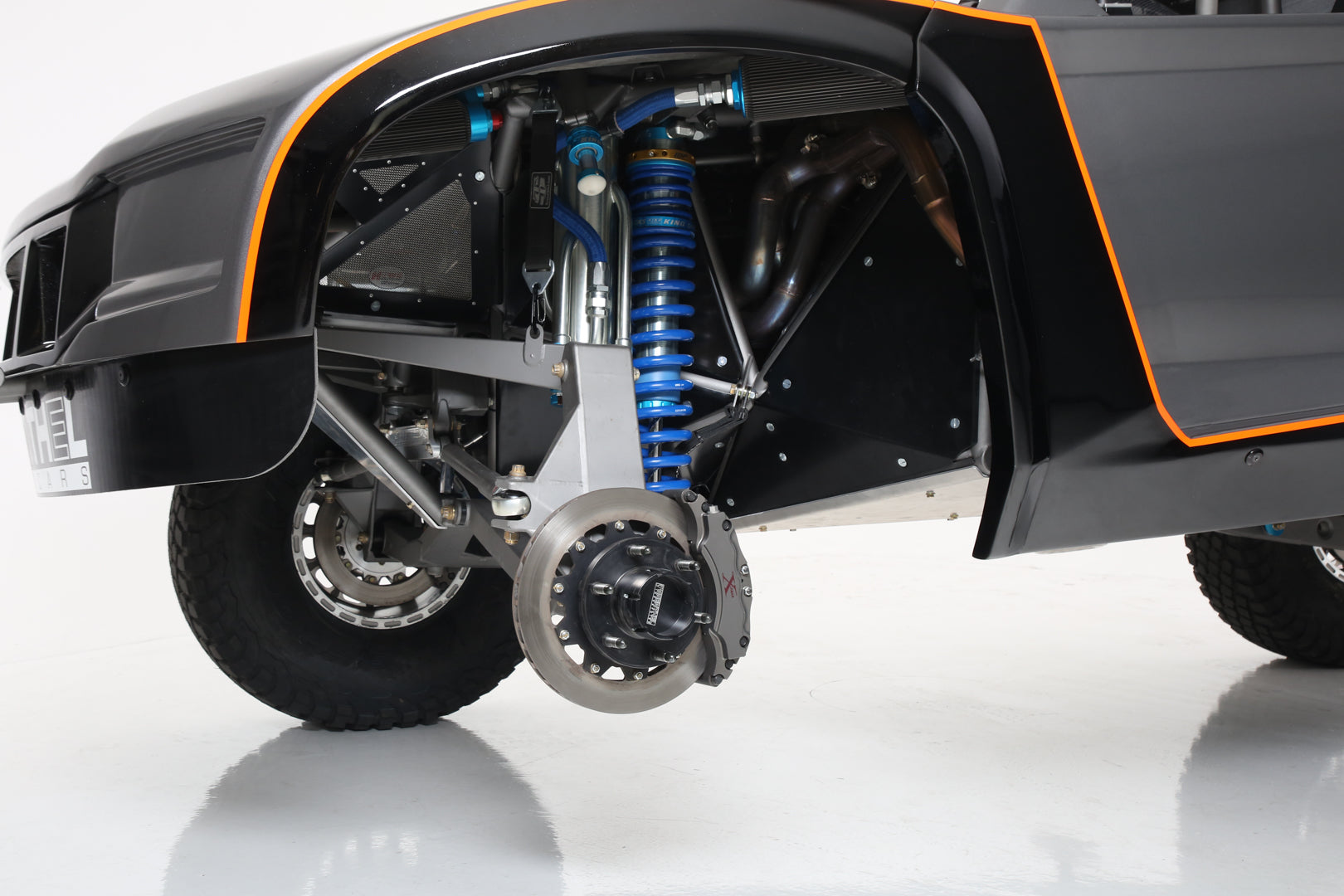

• 3.0" FOX coilovers B.I. proprietary valving w/ Bumpstops
• 4.5" FOX Bypass B.I. proprietary valving
• Portal custom hubs designed with drop gear
• 3.0" FOX coilovers B.I. proprietary valving w/ Bumpstops
• 4.5" FOX Bypass B.I. proprietary valving
• Billet Trailing Arms
• Power Steering
• Billet PS Pump
• HOWE / PSS or Lee (Based on avail) Steering Box with Billet Adapter and 4130 Swingers
• B.I. Steering column assy. W/ 4130 shaft & sealed bearings
• Danzio P600 (big block)
• Fortin FRST 4.0 - 5 speed sequential
• Fortin front diff
• Custom B.I. Stainless Headers w/ precision fitment & specifications
• 4" Custom 4130 Housing (Completely Tig Welded with Billet Mounts)
• 300m Gun Drilled 36spline TT axles,
• 10" Tubeworks Cross Tie or Gearworks 3rd Member

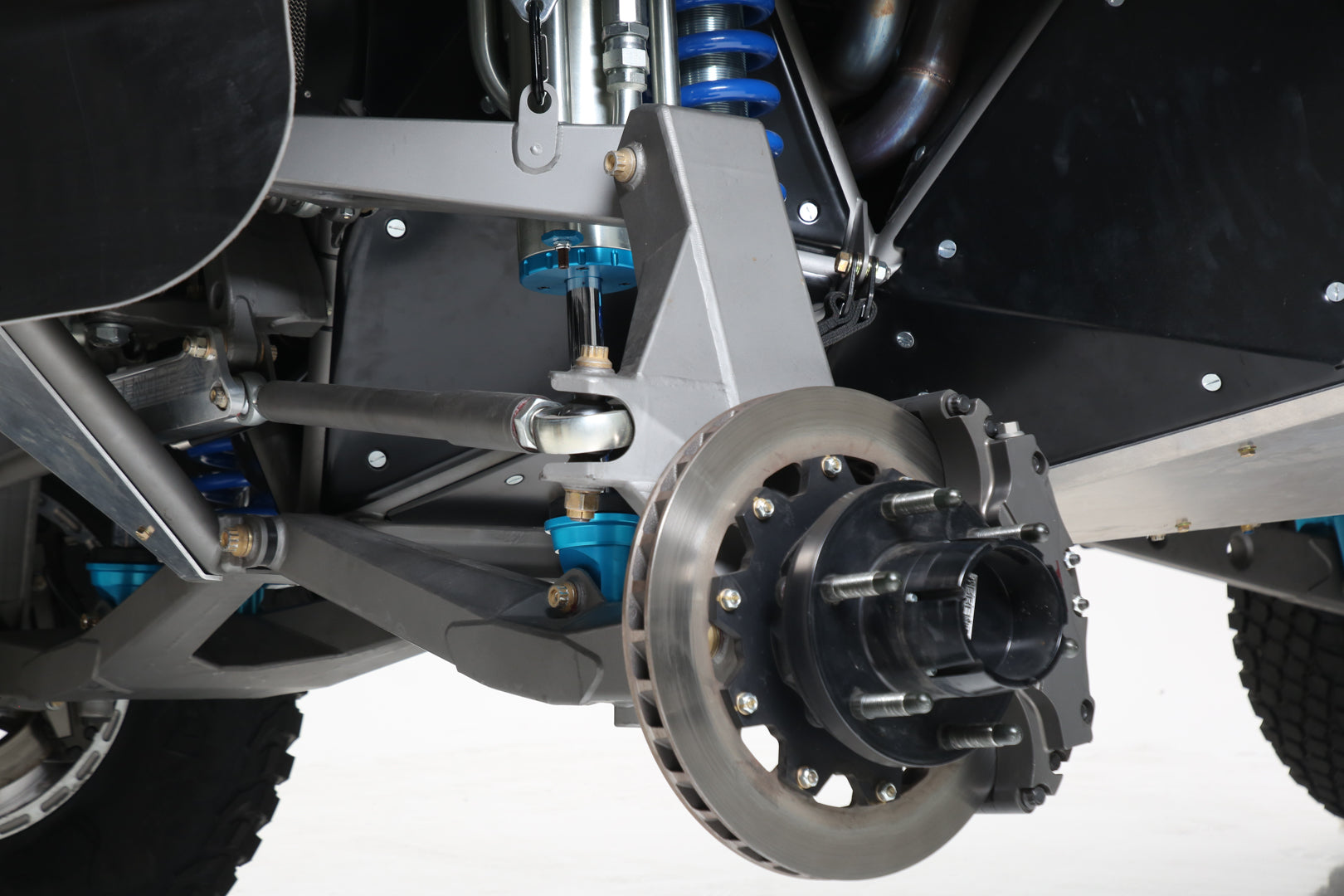

• 6 piston Alcon Calipers w/ Floating Rotors and hardware
• 3.25" 4130 spindles
• 1480 Driveline with Abro (High Speed Balance)
• Fuel System - Redundant Weldon Fuel Pumps
• 95 gal. fuel cell, FIA & SCORE legal
• Custom double pass radiator w/ 2-14" elec fans
• Custom radiator lines w/ silicone hose
• 1 Oil cooler
• 2 -Transmission coolers
• 1 - Transmission heat exchanger
• PS cooler (New 2022 with 2 pans and much more cooling)
• Seat Sliders (Included Driver & Passenger)

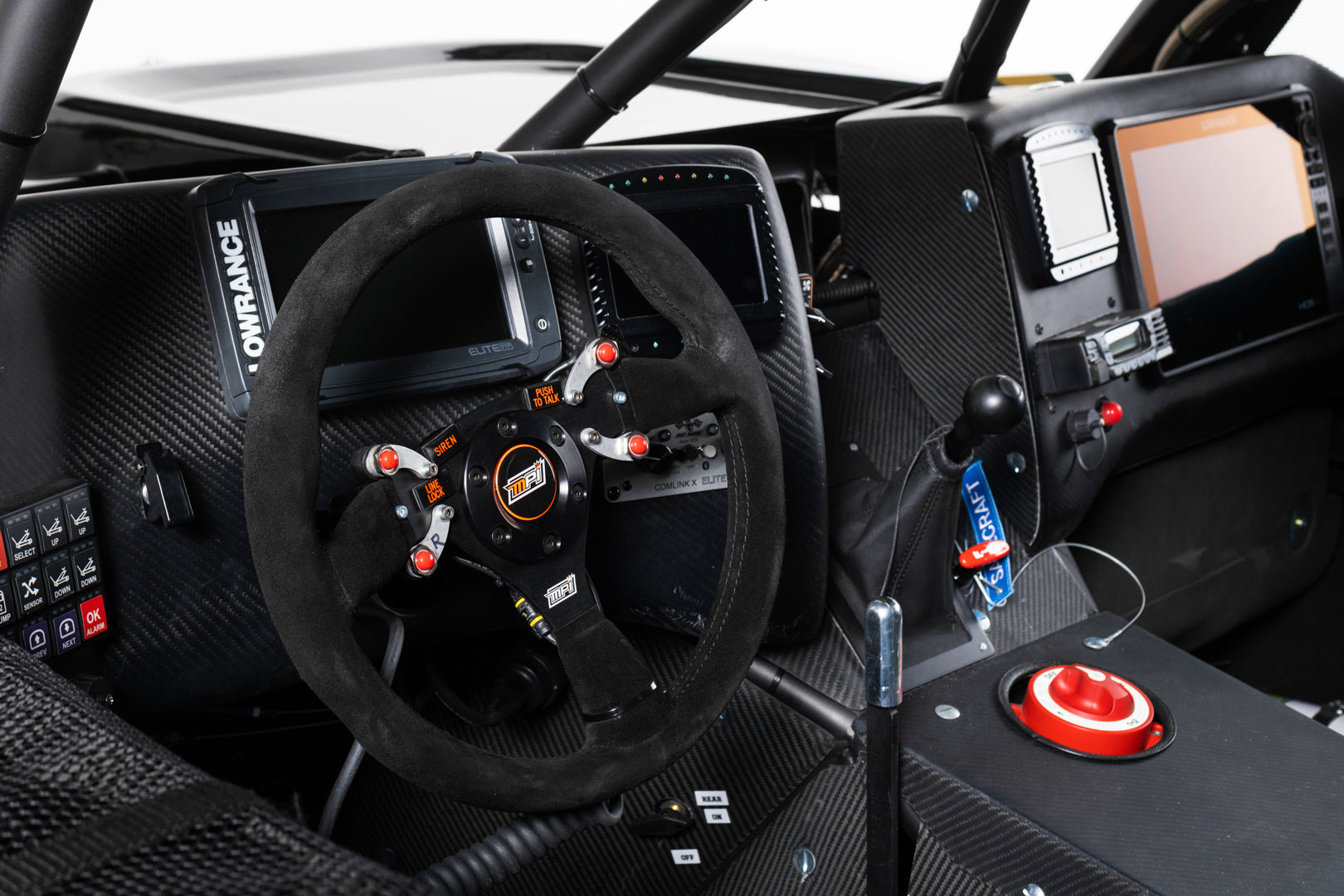

• Carbon Dash
• Fire Suppression system

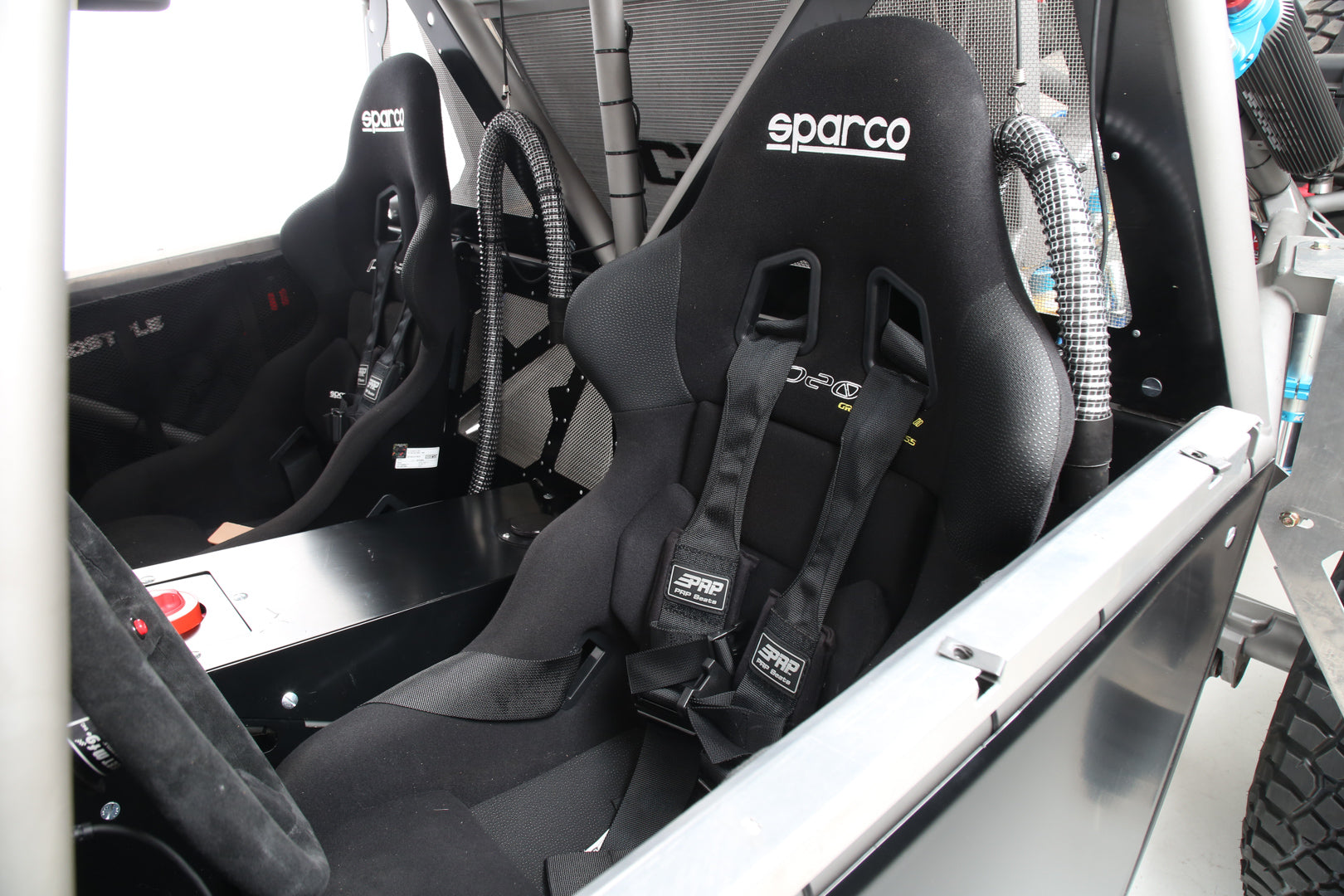

• 2- Sparco Seats
• 2- PRP CamLock Harnesses
• Driver - 7" Elite HDS GPS
• Passenger - 12" HDS GPS
• 2 - Total Power battery
• All plumbing
• LIFE Display on Driver & Passenger
• Paddle Shifting for Fortin 5 Speed
• Data Logging Included
• Speed Pit Limiter Included
• Brake Pressure Sensors
• Engine Temp / Oil Temp / Fuel Pressure
• Hydraulic Jacks included
• Full fiberglass body
• All alum paneling
• 6-17" Method beadlocked wheels
• 6-40" NEW
START YOUR AWD 2WD TT BUILD
Ready to experience the next level of off-road racing? Our experts will walk you through every step of your 2WD TT build—from precision performance tuning to full custom upgrades—so you can create a truck built for unmatched speed, handling, and endurance. Reach out today and start building your ultimate off-road machine.
